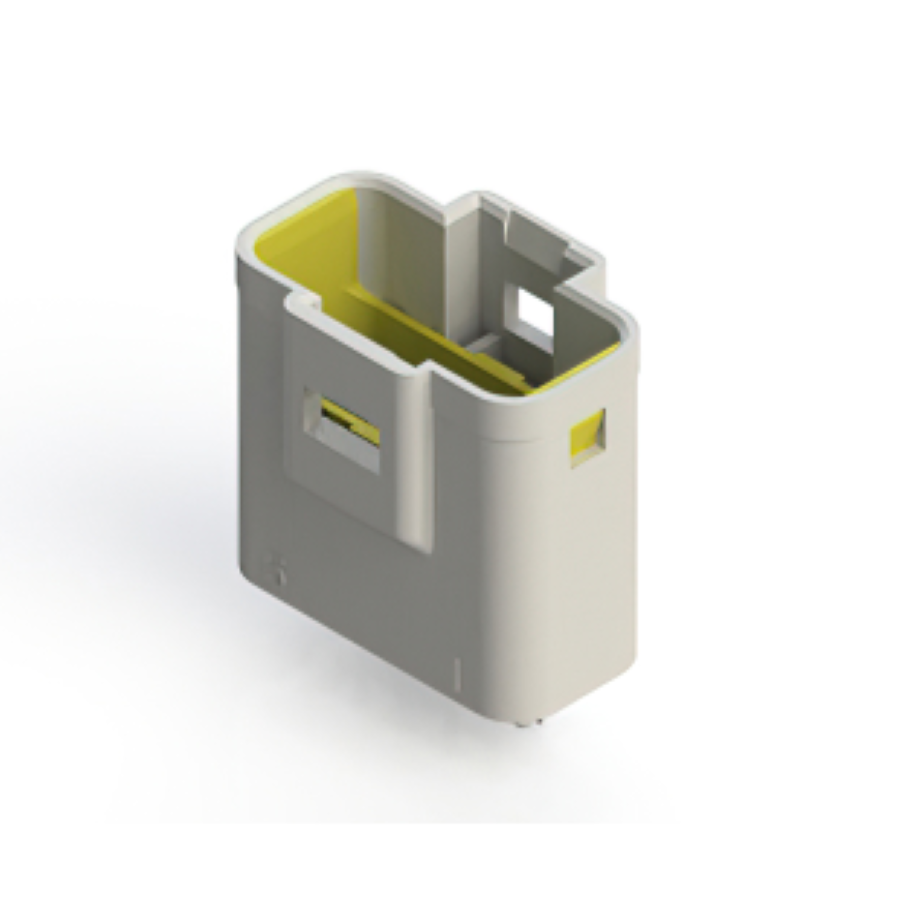

560-005-420-101
Manufacturer:
EDAC
Mfr.Part #:
560-005-420-101
Datasheet:
Description:
Connectors Straight Pin Number of Rows:1 White Male Contact Plating:Tin Pitch:2.4892 mm Number of Positions:5
| Parameter | Value |
|---|---|
| Termination | Solder |
| Number of Pins | 5 |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.4892 mm |
| Flammability Rating | UL94 V-0 |
| Color | White |
| Gender | Male |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Fastening Type | Latch |
| Current Rating | 3 A |
| Voltage Rating | 250 V |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 105 °C |
| Contact Shape | Circular |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Packaging | Bulk |
Stock: 500
Distributors
pcbx
pcbxUnit Price$1.31417
Ext.Price$1.31417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31417 | $1.31417 |
| 10 | $1.11565 | $11.15650 |
| 25 | $1.04541 | $26.13525 |
| 50 | $0.99549 | $49.77450 |
| 100 | $0.94793 | $94.79300 |
| 300 | $0.87716 | $263.14800 |
| 500 | $0.84609 | $423.04500 |
| 1000 | $0.80572 | $805.72000 |
