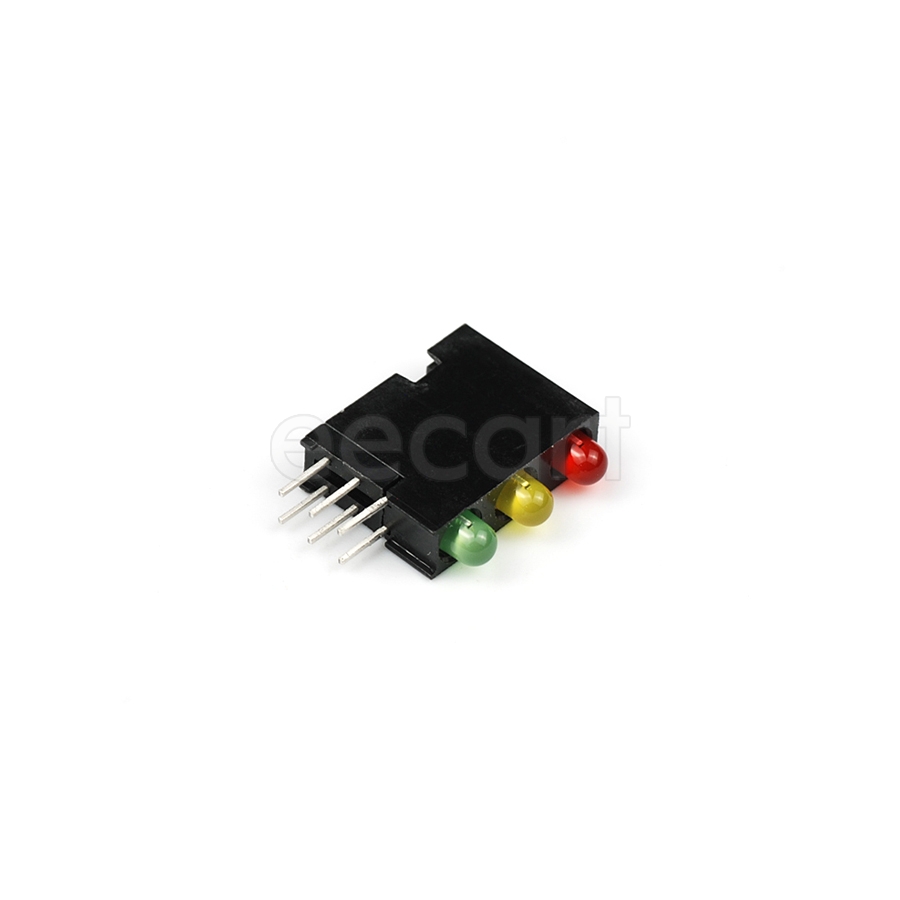

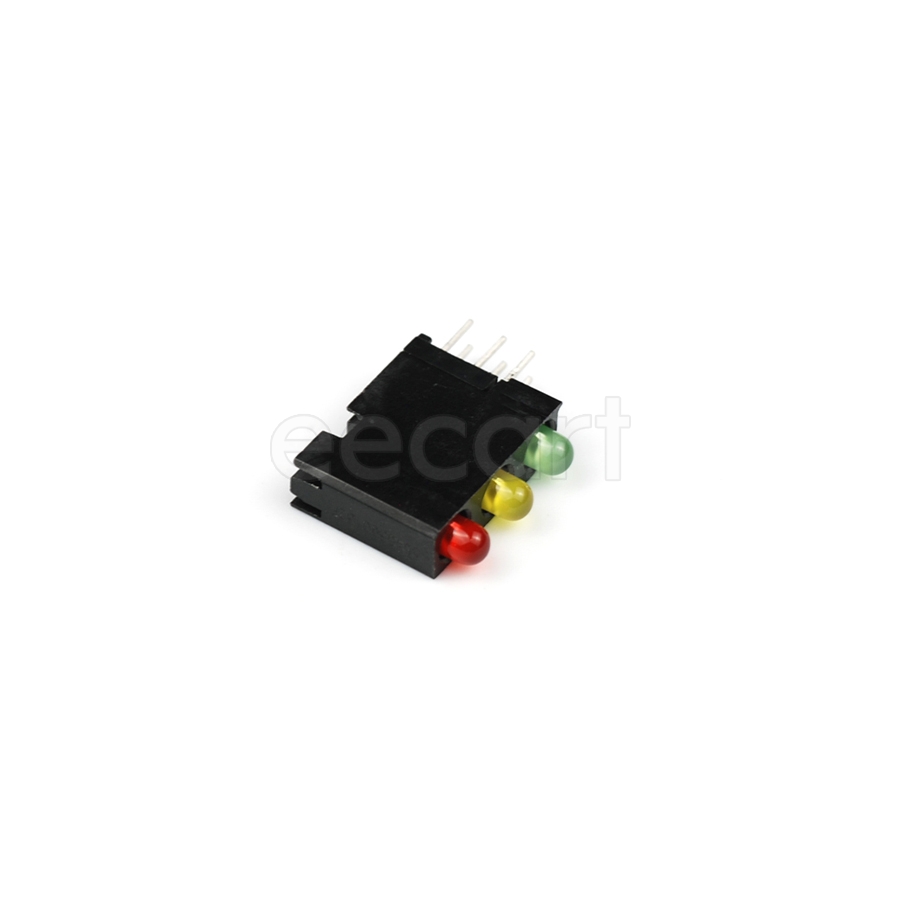

5640300132F
Manufacturer:
Dialight
Mfr.Part #:
5640300132F
Datasheet:
Description:
LEDs 15.24mmL×11.56mmW×4.32mmH Through Hole Green, Red, Yellow 635 nm, 585 nm, 565 nm 10 mA 20 V
| Parameter | Value |
|---|---|
| Length | 14.32 mm |
| Width | 4.32 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 15.24 mm |
| Packaging | Bulk |
| Voltage Rating | 5 V |
| Depth | 4.32 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 3 |
| Current | 10 mA |
| Forward Current | 10 mA |
| Forward Voltage | 20 V |
| Color | Green, Red, Yellow |
| Illumination Color | Green, Red, Yellow |
| Lens Style | Colored, Diffused |
| Luminous Intensity | 12.6 mcd |
| Number of Contacts | 6 |
| Number of LEDs | 3 |
| Viewing Angle | 60 ° |
| Wavelength | 565 nm |
| Lens Transparency | Diffused |
| Lens Color | Tinted |
| Dominant Wavelength/CCT (K) | 635 nm, 585 nm, 565 nm |
Stock: 114
Distributors
pcbx
pcbxUnit Price$2.20239
Ext.Price$2.20239
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.20239 | $2.20239 |
| 10 | $1.61491 | $16.14910 |
| 25 | $1.48848 | $37.21200 |
| 50 | $1.37195 | $68.59750 |
| 100 | $1.26453 | $126.45300 |
| 300 | $1.18524 | $355.57200 |
| 500 | $1.11091 | $555.45500 |
| 1000 | $1.06090 | $1060.90000 |
| 3000 | $1.01572 | $3047.16000 |
| 5000 | $0.97246 | $4862.30000 |
