57-21/R6C-AP1Q2B/BF
Manufacturer:
Everlight
Mfr.Part #:
57-21/R6C-AP1Q2B/BF
Datasheet:
Description:

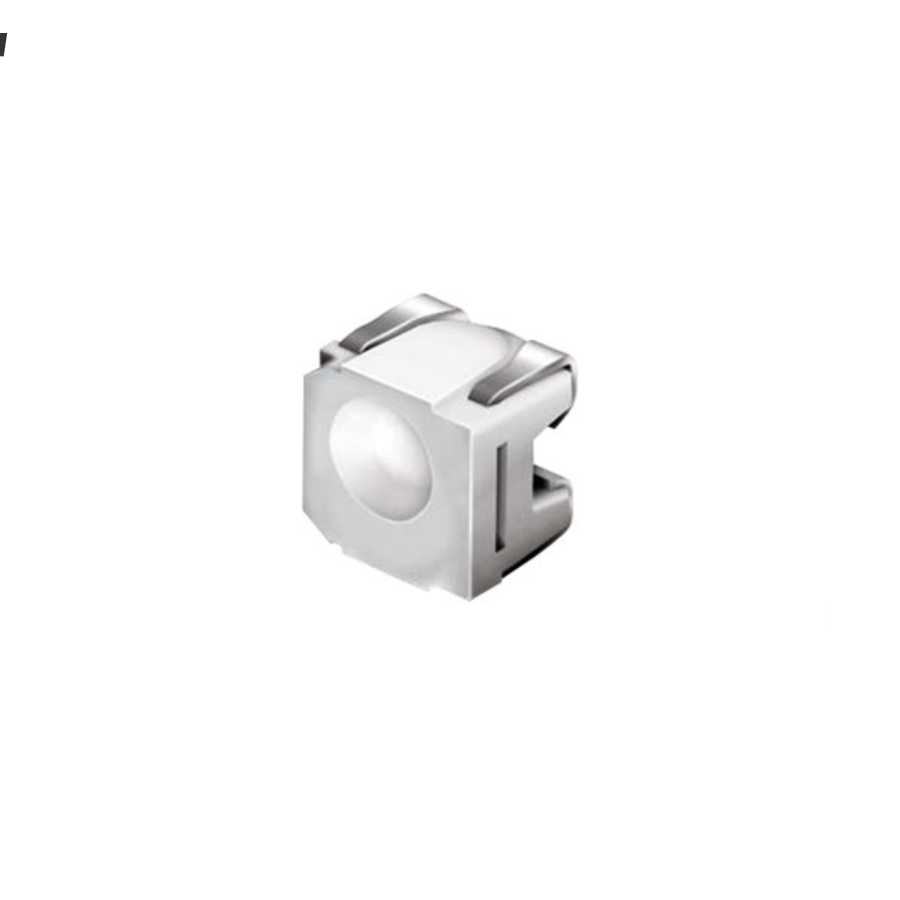

LEDs SMD SMD/SMT Brilliant Red 617.5 nm to 633.5 nm 25 mA 1.75 V to 2.35 V
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Width | 3.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 4 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Forward Current | 25 mA |
| Forward Voltage | 1.75 V to 2.35 V |
| Color | Red |
| Illumination Color | Brilliant Red |
| Lens Style | Circular, Clear |
| Luminous Intensity | 79 mcd |
| Number of LEDs | 1 |
| Viewing Angle | 120 ° |
| Lens Transparency | Water Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 617.5 nm to 633.5 nm |
| Test Current | 20 mA |
Stock: 2466
Distributors
pcbx
pcbxUnit Price$0.15888
Ext.Price$0.15888
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15888 | $0.15888 |
| 10 | $0.14184 | $1.41840 |
| 50 | $0.12662 | $6.33100 |
| 100 | $0.11055 | $11.05500 |
| 500 | $0.09652 | $48.26000 |
| 1000 | $0.09251 | $92.51000 |
| 3000 | $0.08866 | $265.98000 |
| 5000 | $0.08497 | $424.85000 |
