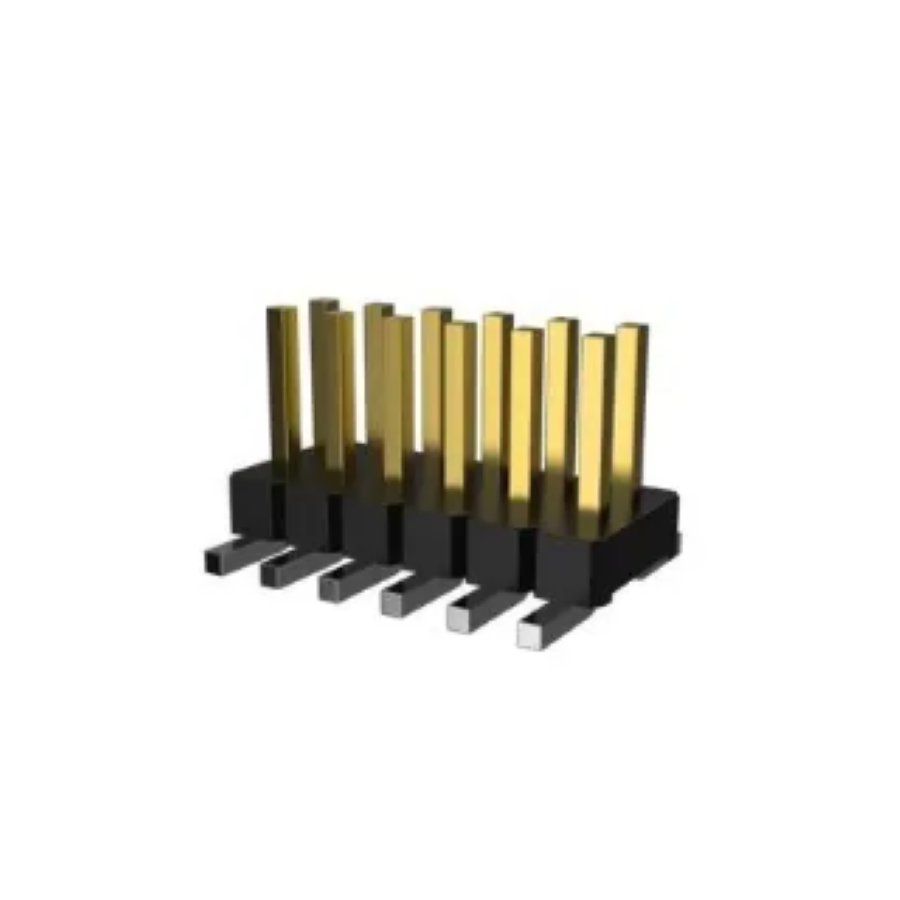

57202-G52-06ALF
Manufacturer:
Amphenol
Mfr.Part #:
57202-G52-06ALF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 650 V |
| Depth | 7 mm |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Output Current | 1.4 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 650 V |
| Housing Color | Black |
| Contact Mating Length | 3.9878 mm |
| Mating Post Length | 4 mm |
Stock: 886
Distributors
pcbx
pcbxUnit Price$1.71322
Ext.Price$1.71322
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.71322 | $1.71322 |
| 10 | $1.46832 | $14.68320 |
| 25 | $1.32280 | $33.07000 |
| 50 | $1.19170 | $59.58500 |
| 100 | $1.07360 | $107.36000 |
| 300 | $1.03814 | $311.44200 |
| 500 | $1.00385 | $501.92500 |
| 1000 | $0.97068 | $970.68000 |
