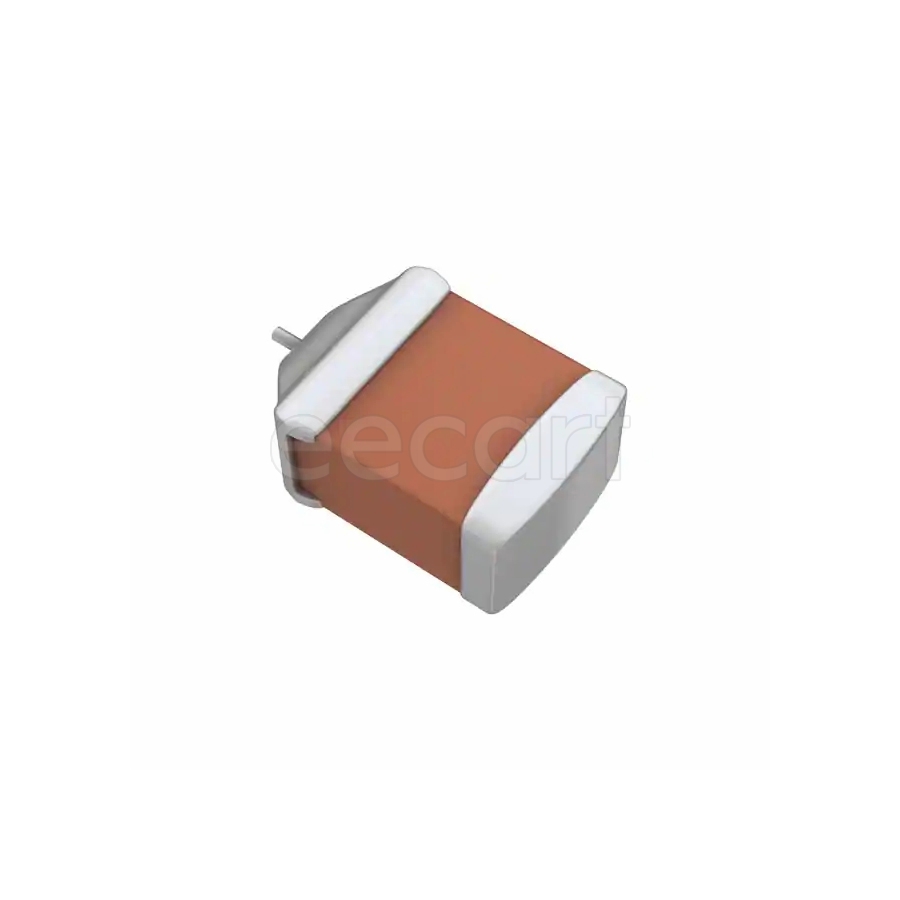

594D107X9016C2T
Manufacturer:
Vishay
Mfr.Part #:
594D107X9016C2T
Datasheet:
Description:
Tantalum Capacitors 2812(7132 Metric) SMD/SMT 100 µF 10 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 80 mΩ |
| Ripple Current | 1.17 A |
| Height - Seated (Max) | 2.794 mm |
| Length | 7.1 mm |
| Width | 3.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2812 |
| Case Code (Metric) | 7132 |
| Number of Pins | 2 |
| Leakage Current | 16 µA |
| Dissipation Factor | 8 % |
| Height | 2.5 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 16 V |
| REACH SVHC | Unknown |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210050 |
| Type | Conformal Coated |
Stock: 12
Distributors
pcbx
pcbxUnit Price$2.32666
Ext.Price$2.32666
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.32666 | $2.32666 |
| 10 | $2.26570 | $22.65700 |
| 25 | $2.24638 | $56.15950 |
| 50 | $2.22723 | $111.36150 |
| 100 | $2.20821 | $220.82100 |
