594D108X06R3R2T
Manufacturer:
Vishay
Mfr.Part #:
594D108X06R3R2T
Datasheet:
Description:

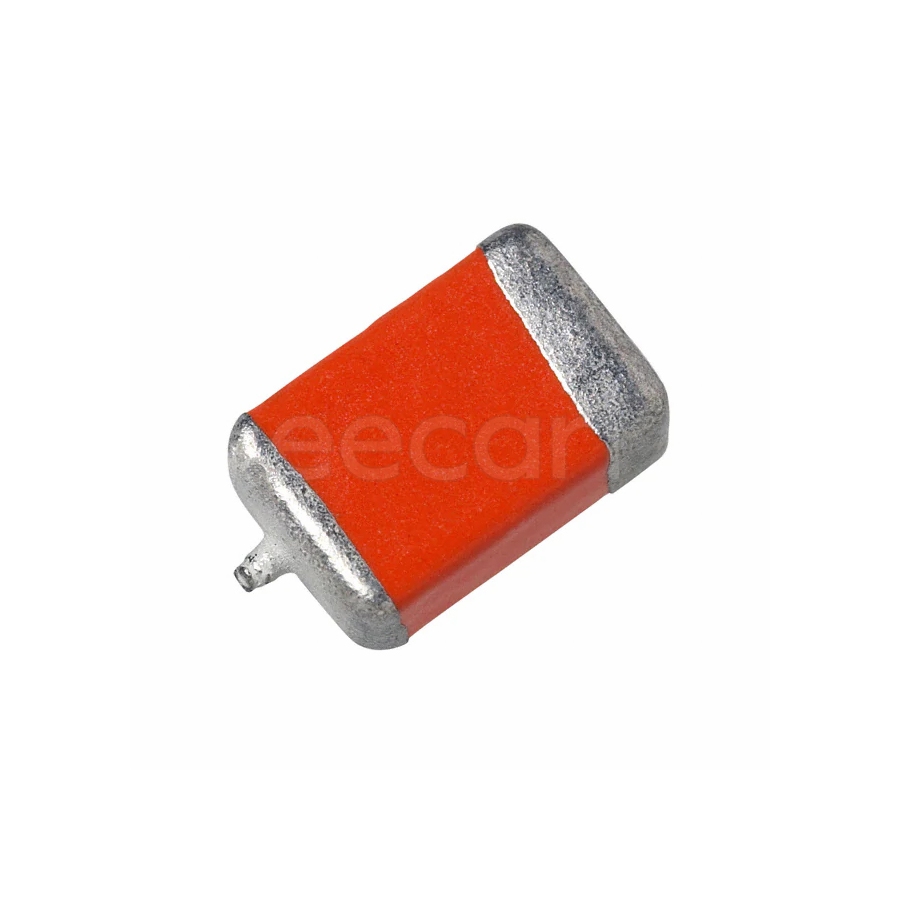

Tantalum Capacitors 2824(7260 Metric) SMD/SMT 1 mF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 30 mΩ |
| Ripple Current | 2.89 A |
| Height - Seated (Max) | 3.76 mm |
| Length | 7.2 mm |
| Width | 5.9944 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2824 |
| Case Code (Metric) | 7260 |
| Number of Pins | 2 |
| Leakage Current | 63 µA |
| Dissipation Factor | 16 % |
| Height | 3.5 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | Unknown |
| Features | General Purpose |
| Type | Conformal Coated |
| Schedule B | 8532210050 |
Stock: 4643
Distributors
pcbx
pcbxUnit Price$5.43070
Ext.Price$5.43070
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.43070 | $5.43070 |
| 10 | $4.08581 | $40.85810 |
| 25 | $3.80784 | $95.19600 |
| 50 | $3.54882 | $177.44100 |
| 100 | $3.38257 | $338.25700 |
| 300 | $3.25808 | $977.42400 |
| 500 | $3.13815 | $1569.07500 |
