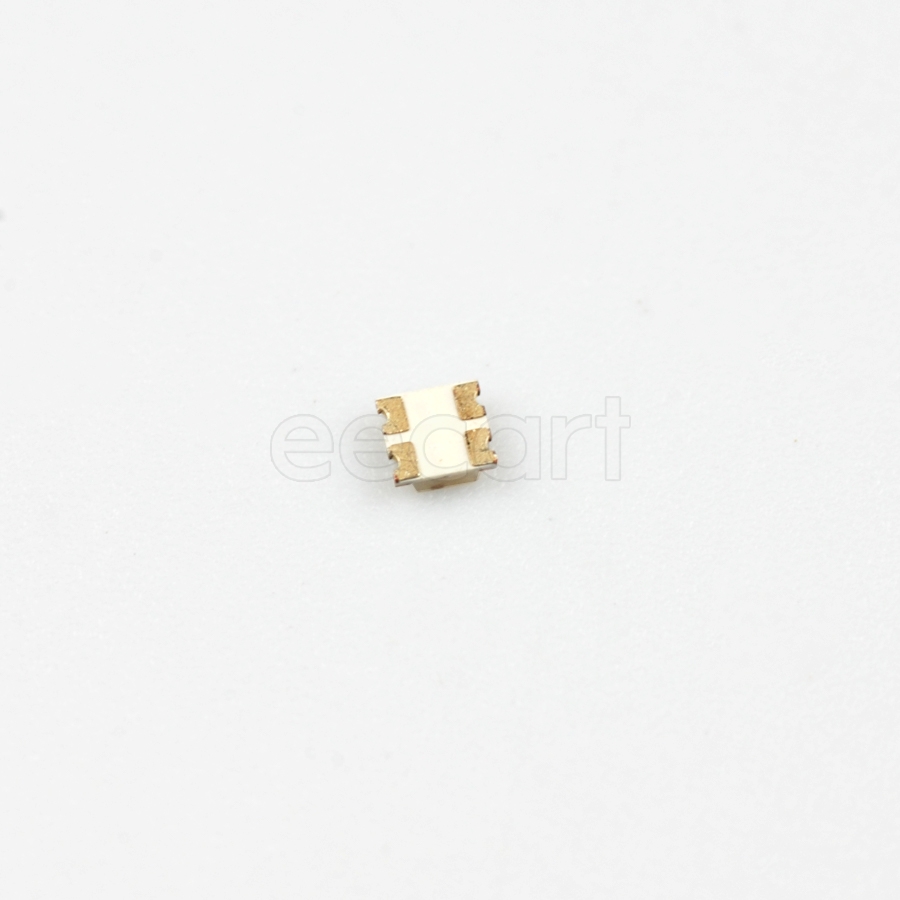

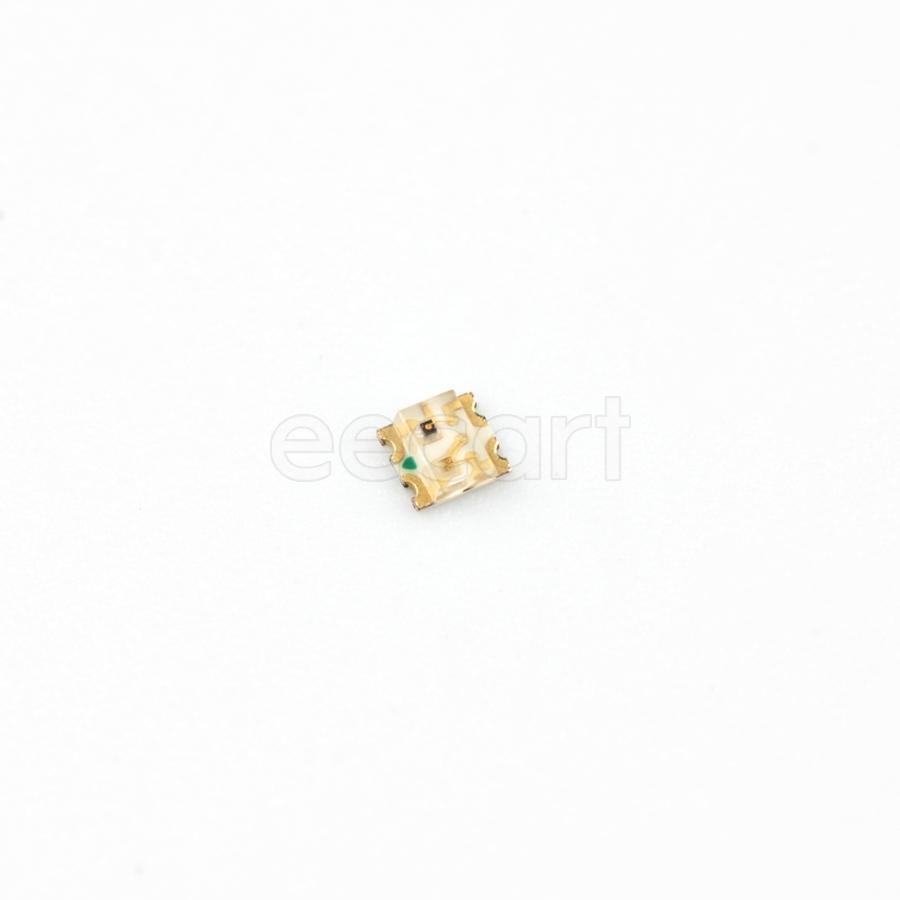

598-8720-307F
Manufacturer:
Dialight
Mfr.Part #:
598-8720-307F
Datasheet:
Description:
LEDs 1.6mmL×1.6mmW×0.7mmH SMD/SMT Blue, Green, Orange 470 nm 20 mA 3.2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0606 |
| Case Code (Metric) | 1616 |
| Number of Pins | 4 |
| Height | 700 µm |
| Packaging | Reel |
| Depth | 1.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 3 |
| Forward Current | 20 mA |
| Forward Voltage | 3.2 V |
| Color | Blue, Green, Orange, Red |
| Illumination Color | Blue, Green, Orange |
| Lens Style | Clear |
| Luminous Intensity | 60 mcd |
| Number of LEDs | 3 |
| Viewing Angle | 140 ° |
| Wavelength | 630 nm |
| Lens Color | Clear |
| Dominant Wavelength/CCT (K) | 470 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Lens Transparency | Water Clear |
Stock: 3668
Distributors
pcbx
pcbxUnit Price$1.44569
Ext.Price$1.44569
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.44569 | $1.44569 |
| 10 | $1.04473 | $10.44730 |
| 25 | $0.95622 | $23.90550 |
| 50 | $0.87521 | $43.76050 |
| 100 | $0.80107 | $80.10700 |
| 300 | $0.74619 | $223.85700 |
| 500 | $0.69506 | $347.53000 |
| 1000 | $0.65744 | $657.44000 |
| 3000 | $0.62501 | $1875.03000 |
| 5000 | $0.59417 | $2970.85000 |
