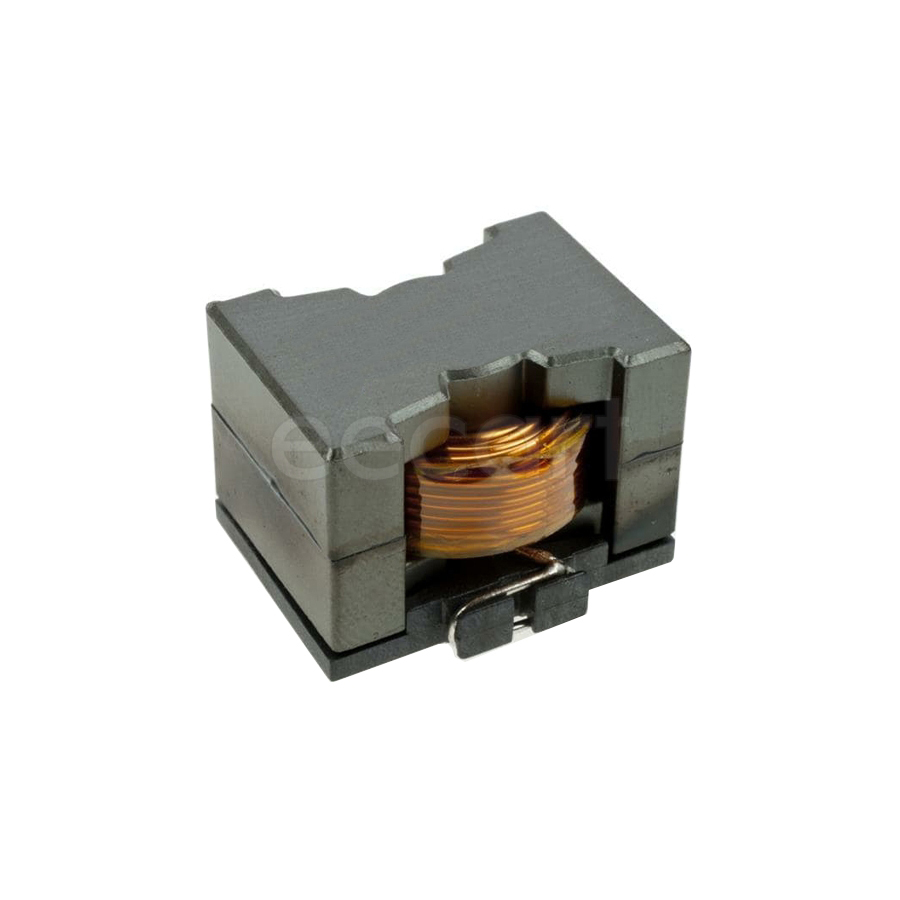

60B104C
Manufacturer:
Murata
Mfr.Part #:
60B104C
Datasheet:
Description:
Fixed Inductors 27.00mmL×19.50mmW×20.00mmH SMD/SMT 100 µH 15 % 7.5 A 25 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 20 mm |
| Length | 27 mm |
| Width | 19.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 20 mm |
| Packaging | Reel |
| Depth | 23.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Self Resonant Frequency | 4.98 MHz |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 25 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 100 µH |
| RMS Current (Irms) | 7.5 A |
| inductance tolerance | 15 % |
| Max DC Current | 7.5 A |
| DC Current | 7.5 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 3875
Distributors
pcbx
pcbxUnit Price$1.51391
Ext.Price$1.51391
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.51391 | $1.51391 |
| 10 | $1.49348 | $14.93480 |
| 25 | $1.47332 | $36.83300 |
| 50 | $1.45344 | $72.67200 |
| 100 | $1.43383 | $143.38300 |
| 300 | $1.41448 | $424.34400 |
| 500 | $1.39539 | $697.69500 |
| 1000 | $1.37653 | $1376.53000 |
