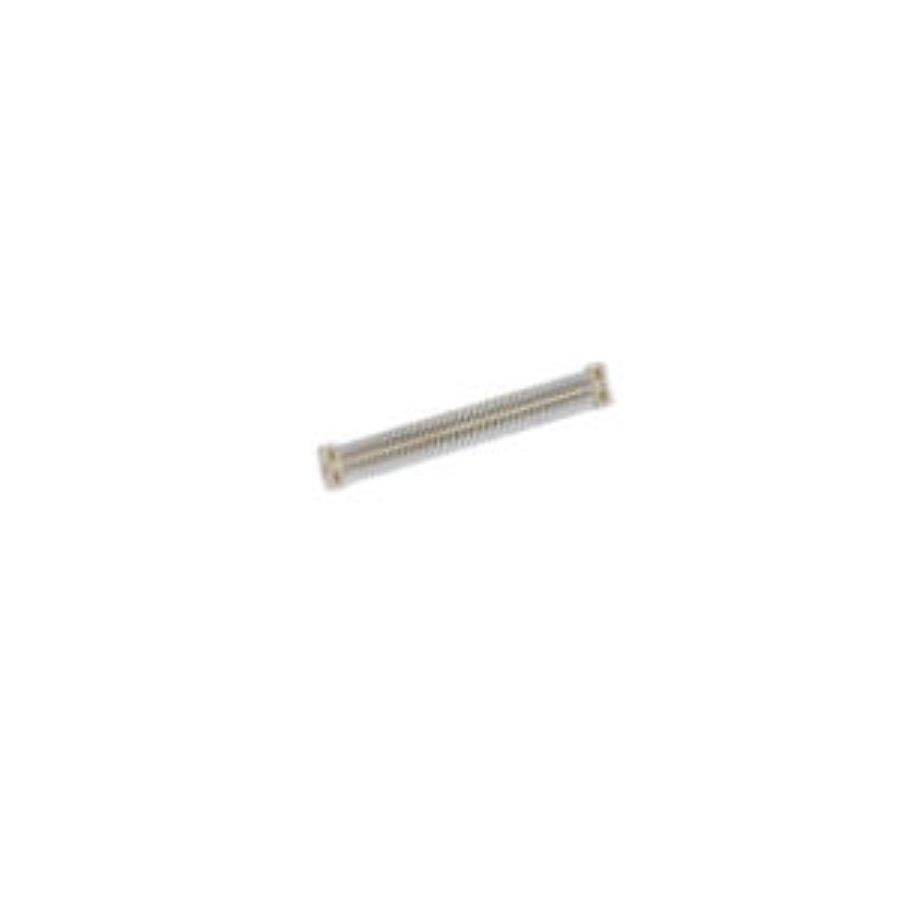

61082-101400LF
Manufacturer:
Amphenol
Mfr.Part #:
61082-101400LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:100 Number of Rows:2 Row Spacing:2 mm Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 45.8 mm |
| Width | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 100 V |
| Material | Liquid Crystal Polymer |
| Packaging | Tube |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Current Rating | 800 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 100 |
| Connector Type | Receptacle |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Insulation Material | Polyester |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Stack Height | 3.7 mm |
| Mated Stacking Heights | 8 mm |
| Mounting Angle | Vertical |
Stock: 13
Distributors
pcbx
pcbxUnit Price$5.63798
Ext.Price$5.63798
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.63798 | $5.63798 |
| 10 | $4.86874 | $48.68740 |
| 25 | $4.57834 | $114.45850 |
| 50 | $4.30526 | $215.26300 |
| 100 | $4.04849 | $404.84900 |
