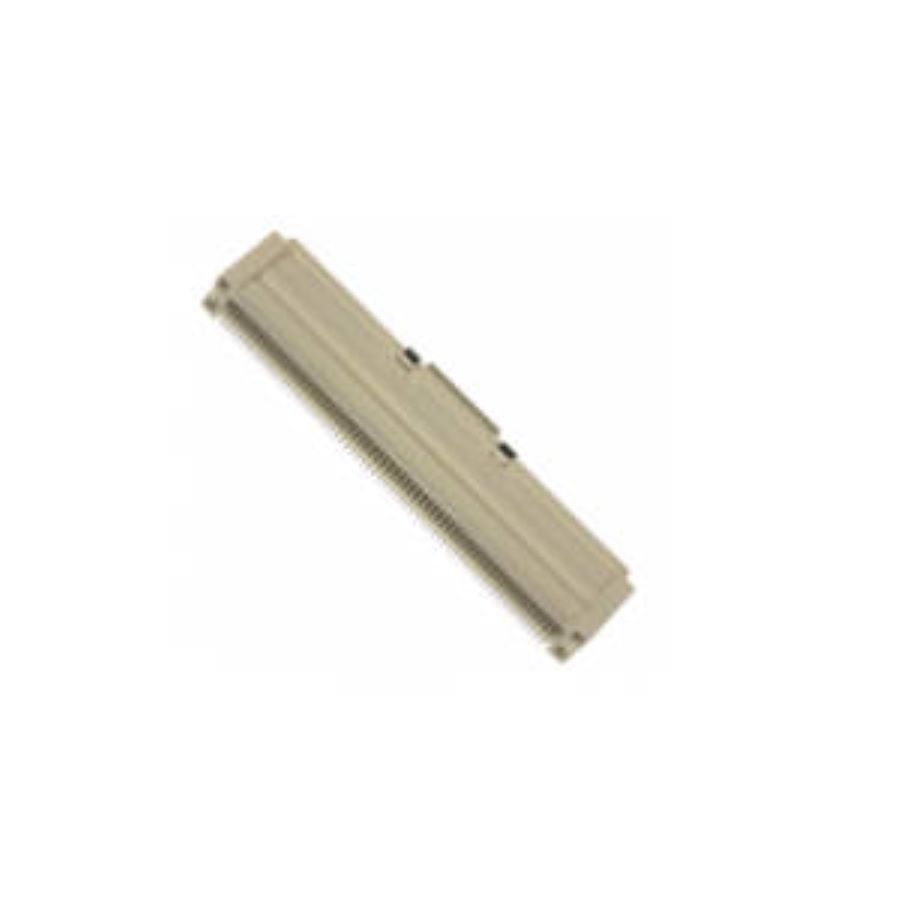

61082-123402LF
Manufacturer:
Amphenol
Mfr.Part #:
61082-123402LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:120 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 53.8 mm |
| Width | 6.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Current Rating | 800 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 120 |
| Connector Type | Receptacle |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Stack Height | 13mm, 14mm, 15mm, 16mm |
| Mated Stacking Heights | 16 mm |
| Mounting Angle | Vertical |
Stock: 164
Distributors
pcbx
pcbxUnit Price$2.52202
Ext.Price$2.52202
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.52202 | $2.52202 |
| 10 | $2.40326 | $24.03260 |
| 25 | $2.37291 | $59.32275 |
| 50 | $2.34294 | $117.14700 |
| 100 | $2.31335 | $231.33500 |
| 300 | $2.28416 | $685.24800 |
| 500 | $2.23469 | $1117.34500 |
