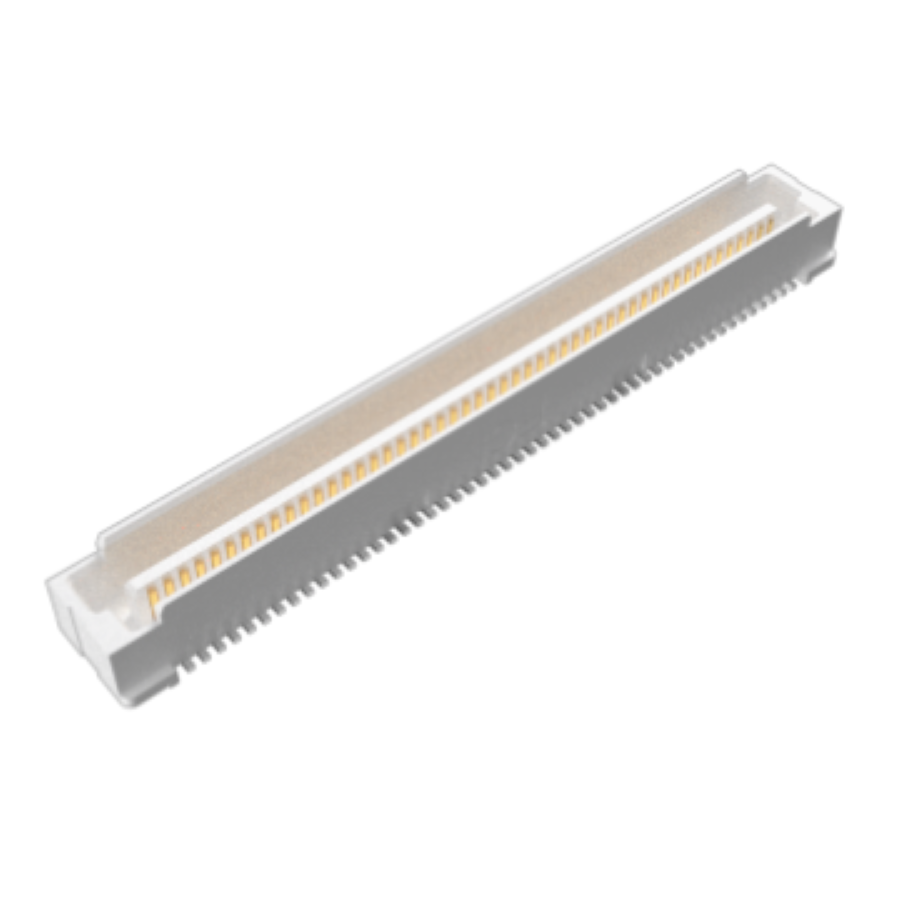

61083-084402LF
Manufacturer:
Amphenol
Mfr.Part #:
61083-084402LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Plug Number of Positions:80 Number of Rows:2 Row Spacing:2.4 mm Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 37.8 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 80 |
| Connector Type | Plug |
| Number of Rows | 2 |
| Row Spacing | 2.4 mm |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Stack Height | 7.7 mm |
| Mated Stacking Heights | 16 mm |
| Number of Positions | 80 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Packaging | Reel |
| Mounting Angle | Vertical |
| RoHS | Compliant |
Stock: 123
Distributors
pcbx
pcbxUnit Price$4.26183
Ext.Price$4.26183
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.26183 | $4.26183 |
| 10 | $2.92899 | $29.28990 |
| 25 | $2.80331 | $70.08275 |
| 50 | $2.75971 | $137.98550 |
| 100 | $2.75971 | $275.97100 |
| 300 | $2.75971 | $827.91300 |
