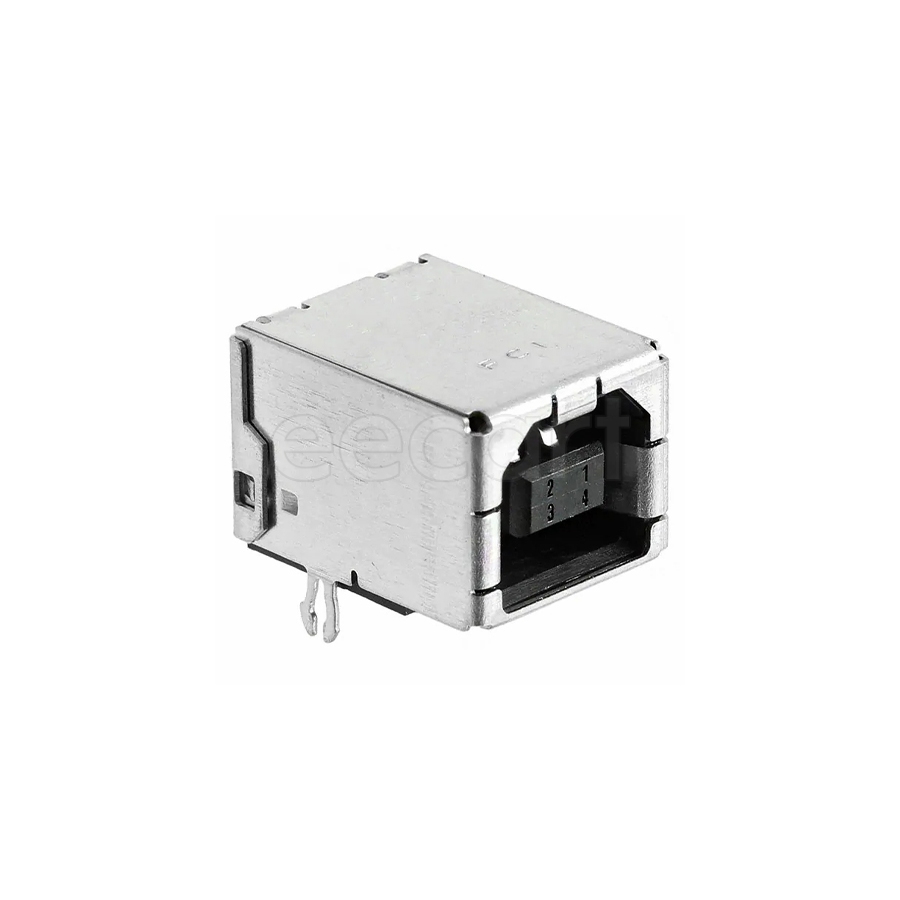

61729-1011BLF
Manufacturer:
Amphenol
Mfr.Part #:
61729-1011BLF
Datasheet:
Description:
USB Connectors Through Hole USB-B (USB TYPE-B) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| Length | 11.2 mm |
| Termination | Solder |
| Diameter | 6.3 mm |
| Min Operating Temperature | -55 °C |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 16 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| Manufacturer Package Identifier | 61729-1011BLF |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Features | Shielded |
| Pitch | 2.5 mm |
| Number of Terminals | 4 |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Tin |
| Type | USB-B (USB TYPE-B) |
| Shielding | Shielded |
| Mounting Angle | Right Angle |
Stock: 1153
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.54801 | $5.48010 |
| 25 | $0.53519 | $13.37975 |
| 50 | $0.51043 | $25.52150 |
| 100 | $0.48681 | $48.68100 |
| 300 | $0.46429 | $139.28700 |
| 500 | $0.44281 | $221.40500 |
| 1000 | $0.42233 | $422.33000 |
