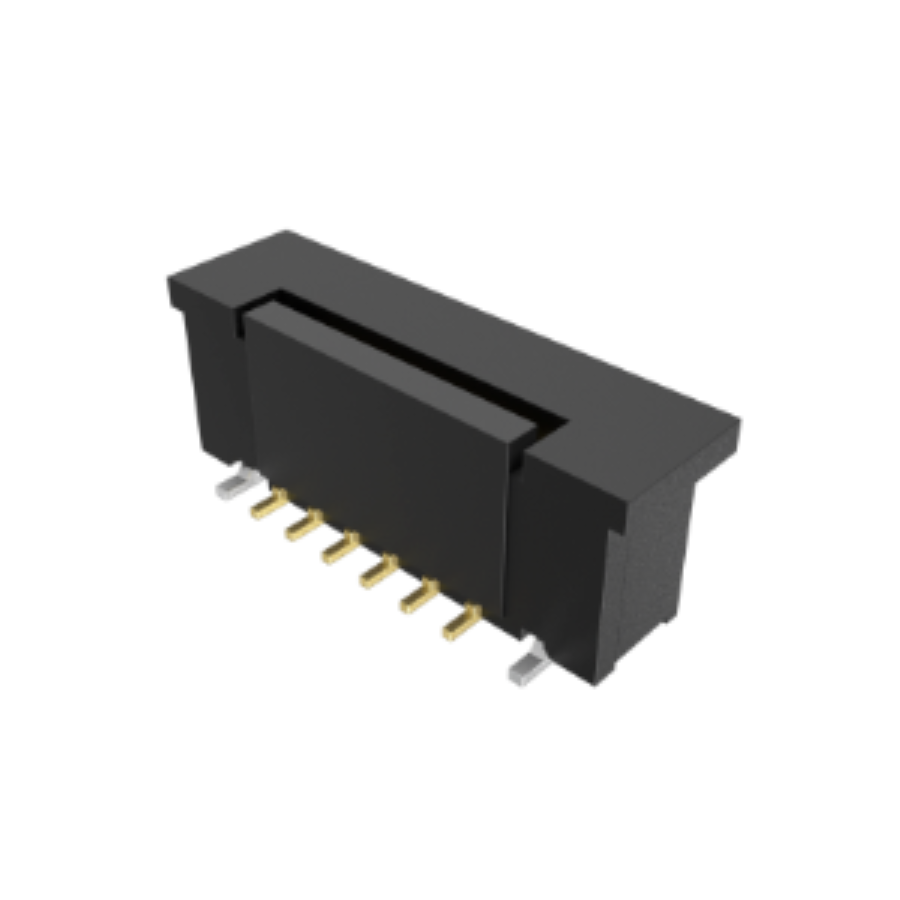

62674-201121ALF
Manufacturer:
Amphenol
Mfr.Part #:
62674-201121ALF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:20 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 14.5 mm |
| Width | 2.95 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 2.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Housing Material | Resin |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Plastic |
| Housing Color | Black |
