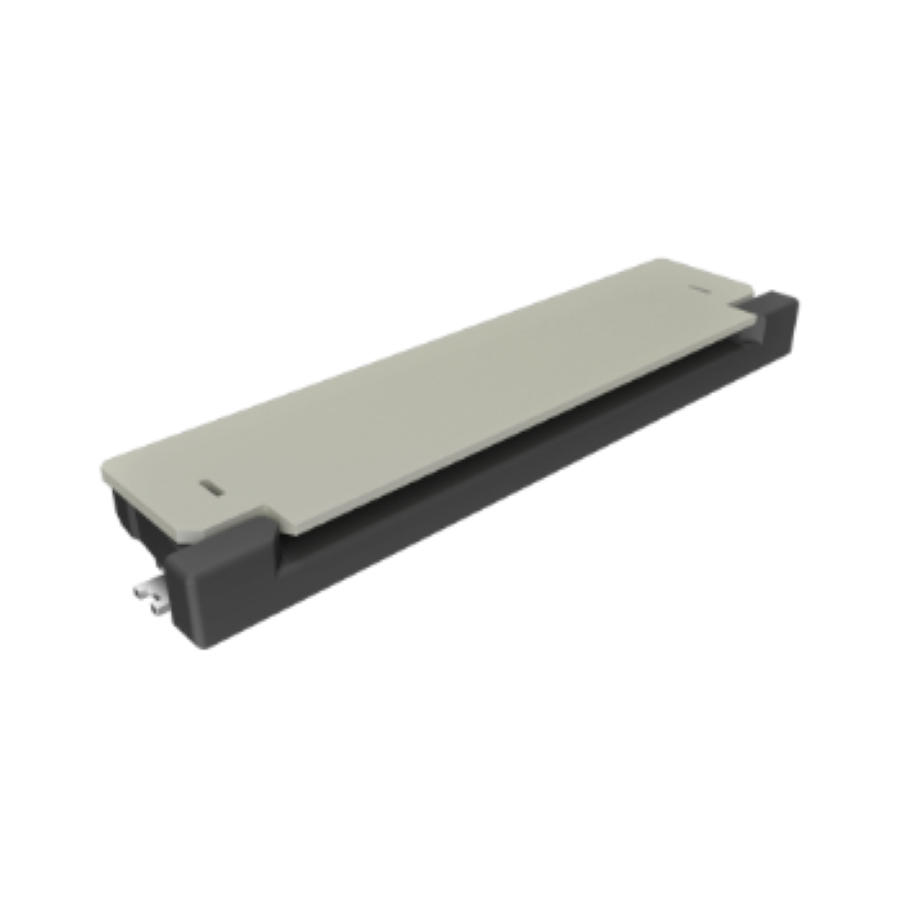

62684-322100ALF
Manufacturer:
Amphenol
Mfr.Part #:
62684-322100ALF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:32 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 21.5 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 32 |
| Number of Positions | 32 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Location | Top |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Thermoplastic |
| Housing Color | Beige |
| Mounting Angle | Right Angle |
Stock: 2271
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.27870 | $2.78700 |
| 25 | $0.26076 | $6.51900 |
| 50 | $0.25382 | $12.69100 |
| 100 | $0.24707 | $24.70700 |
| 300 | $0.23384 | $70.15200 |
| 500 | $0.22132 | $110.66000 |
| 1000 | $0.20946 | $209.46000 |
| 3000 | $0.20023 | $600.69000 |
| 5000 | $0.19140 | $957.00000 |
| 10000 | $0.18296 | $1829.60000 |
