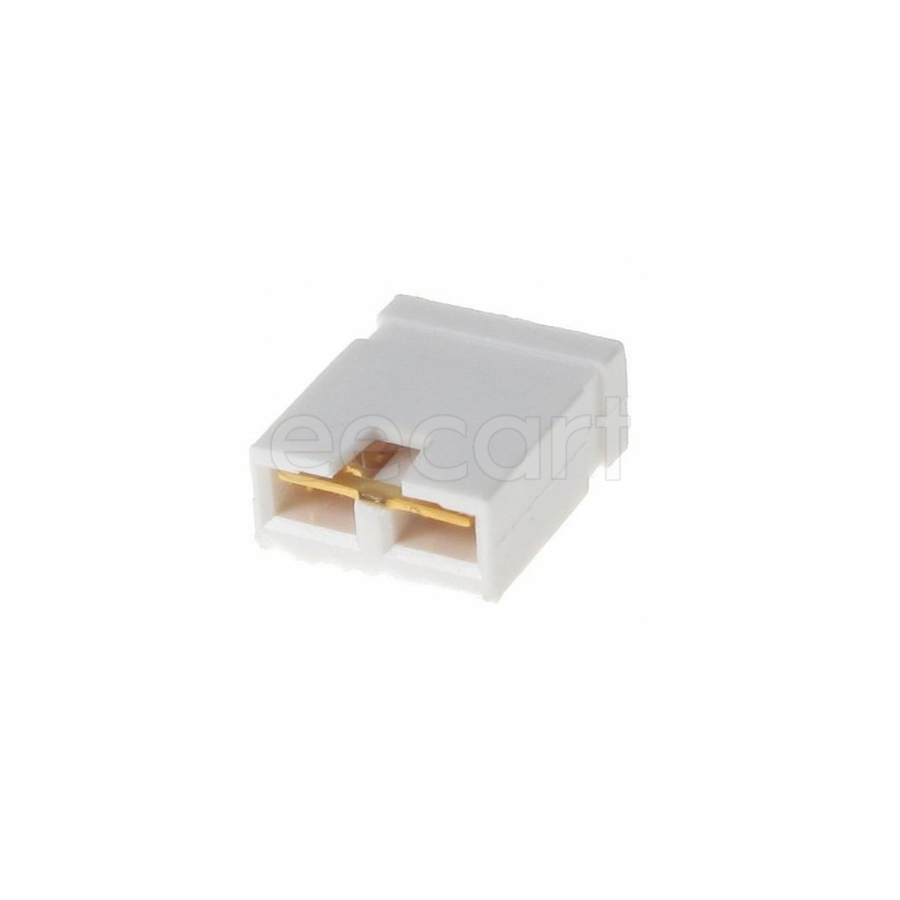

63429-202LF
Manufacturer:
Amphenol
Mfr.Part #:
63429-202LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.05 mm |
| Width | 2.49 mm |
| Termination | Press-Fit |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 5.9944 mm |
| Voltage Rating | 800 V |
| Depth | 2.49 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 2.5 A |
| Orientation | Straight |
| Color | White |
| Gender | Female |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 800 V |
| Housing Color | White |
| Contact Gender | Female |
| Packaging | Bulk |
Stock: 2966
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.14790 | $1.47900 |
| 50 | $0.12919 | $6.45950 |
| 100 | $0.11285 | $11.28500 |
| 500 | $0.10349 | $51.74500 |
| 1000 | $0.09490 | $94.90000 |
