63453-112LF
Manufacturer:
Amphenol
Mfr.Part #:
63453-112LF
Datasheet:
Description:

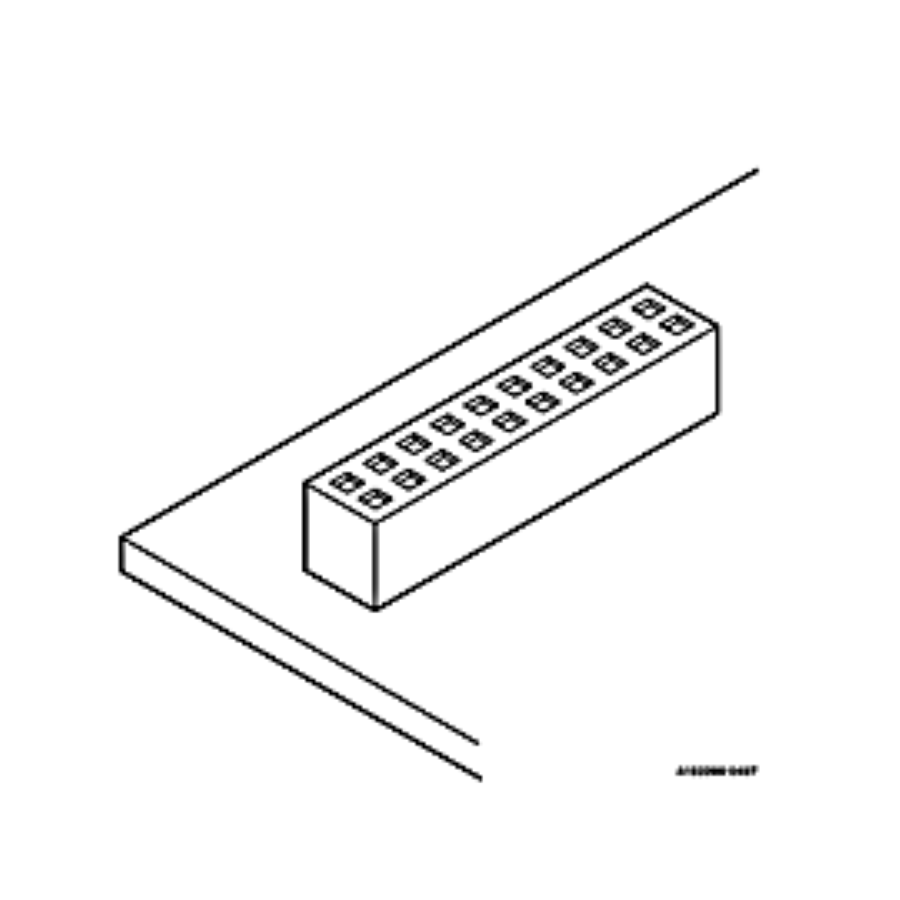

Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 12.8 mm |
| Width | 4.2 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Material | Thermoplastic |
| Packaging | Tube |
| Depth | 4.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze, Copper |
| Pitch | 2 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 12 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 200 V |
| Housing Color | Black |
| Contact Gender | Female |
| Schedule B | 8536694040 |
| Termination Post Length | 2.5 mm |
Stock: 1434
Distributors
pcbx
pcbxUnit Price$0.60700
Ext.Price$0.60700
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60700 | $0.60700 |
| 10 | $0.55656 | $5.56560 |
| 25 | $0.54228 | $13.55700 |
| 50 | $0.52837 | $26.41850 |
| 100 | $0.51481 | $51.48100 |
| 300 | $0.50160 | $150.48000 |
| 500 | $0.48873 | $244.36500 |
| 1000 | $0.47620 | $476.20000 |
