63ZLH1200MEFC16X31.5
Manufacturer:
Rubycon
Mfr.Part #:
63ZLH1200MEFC16X31.5
Datasheet:
Description:

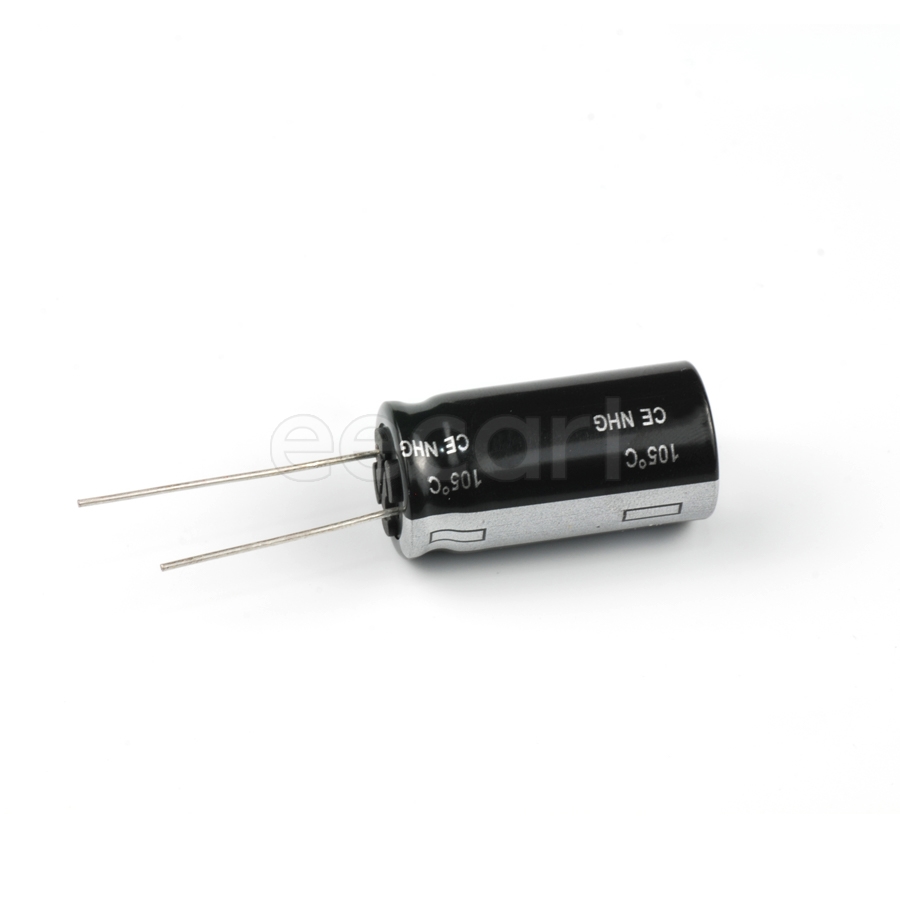

Aluminum Electrolytic Capacitors Radial,16.00mm×31.50mm Through Hole 1.2 mF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 1.2 mF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| Life (Hours) | 10000 Hours |
| Ripple Current | 1.794 A |
| Height - Seated (Max) | 33.5 mm |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 31.5 mm |
| Packaging | Bulk |
| Voltage Rating | 63 V |
| Polarity | Polar |
| Lead Pitch | 7.493 mm |
| REACH SVHC | No SVHC |
| Impedance | 24 mΩ |
| Ripple Current (AC) | 2.8 A |
| Ripple Current @ Low Frequency | 1.794 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.99 A @ 100 kHz |
| RoHS | Compliant |
Stock: 5454
Distributors
pcbx
pcbxUnit Price$1.50180
Ext.Price$1.50180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50180 | $1.50180 |
| 10 | $0.88096 | $8.80960 |
| 25 | $0.82534 | $20.63350 |
| 50 | $0.77323 | $38.66150 |
| 100 | $0.71293 | $71.29300 |
| 300 | $0.65733 | $197.19900 |
| 500 | $0.60607 | $303.03500 |
| 1000 | $0.55880 | $558.80000 |
| 3000 | $0.52669 | $1580.07000 |
| 5000 | $0.49642 | $2482.10000 |
