64600001003
Manufacturer:
Littelfuse
Mfr.Part #:
64600001003
Datasheet:
Description:

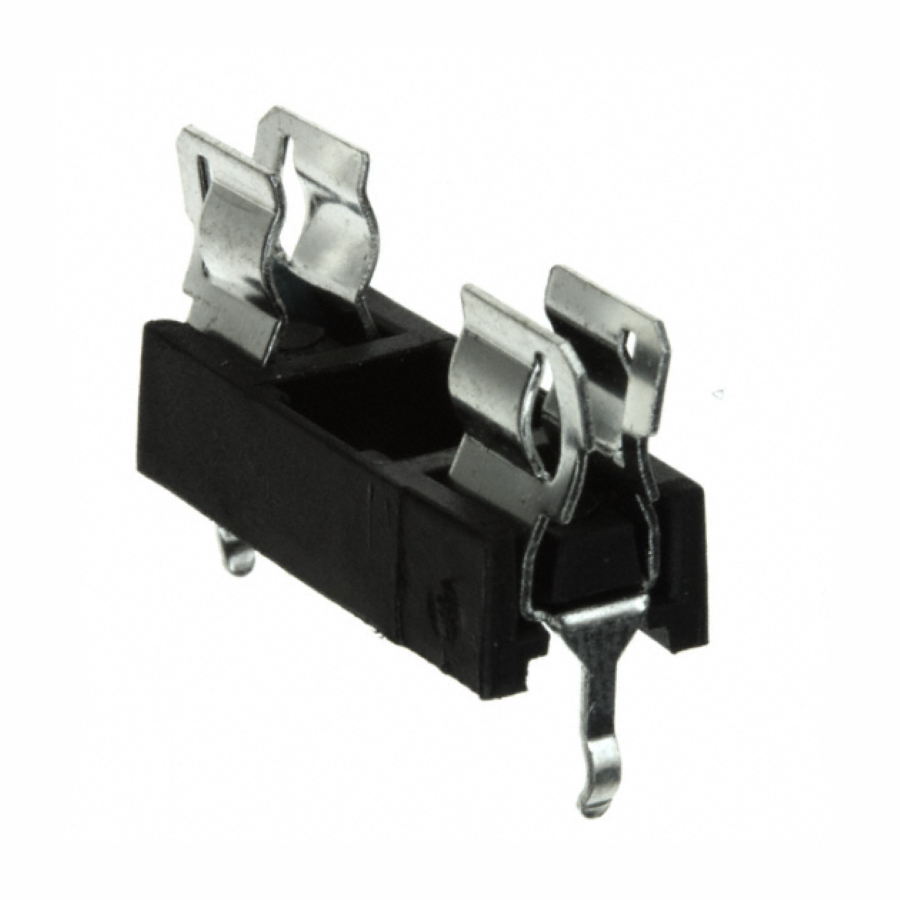

Fuse Holders Horizontal, PCB 6.3 A 250 V Illuminated
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 25.8 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Material | Tin |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.5 mm |
| RoHS | Compliant |
| Voltage | 250 V |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Copper Alloy |
| Current Rating | 6.3 A |
| Flammability Rating | UL94V-1 |
| Number of Circuits | 1 |
| Color | Black |
| Body Material | Polyamide |
| Number of Poles | 1 |
| Illumination Type | Illuminated |
| Fuse Current | 6.3 A |
| For Use With | 5 mm x 20 mm |
Stock: 3295
Distributors
pcbx
pcbxUnit Price$0.78739
Ext.Price$0.78739
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78739 | $0.78739 |
| 10 | $0.65232 | $6.52320 |
| 25 | $0.60590 | $15.14750 |
| 50 | $0.56278 | $28.13900 |
| 100 | $0.52273 | $52.27300 |
| 300 | $0.50159 | $150.47700 |
| 500 | $0.48131 | $240.65500 |
| 1000 | $0.45988 | $459.88000 |
