64900001039
Manufacturer:
Littelfuse
Mfr.Part #:
64900001039
Datasheet:
Description:

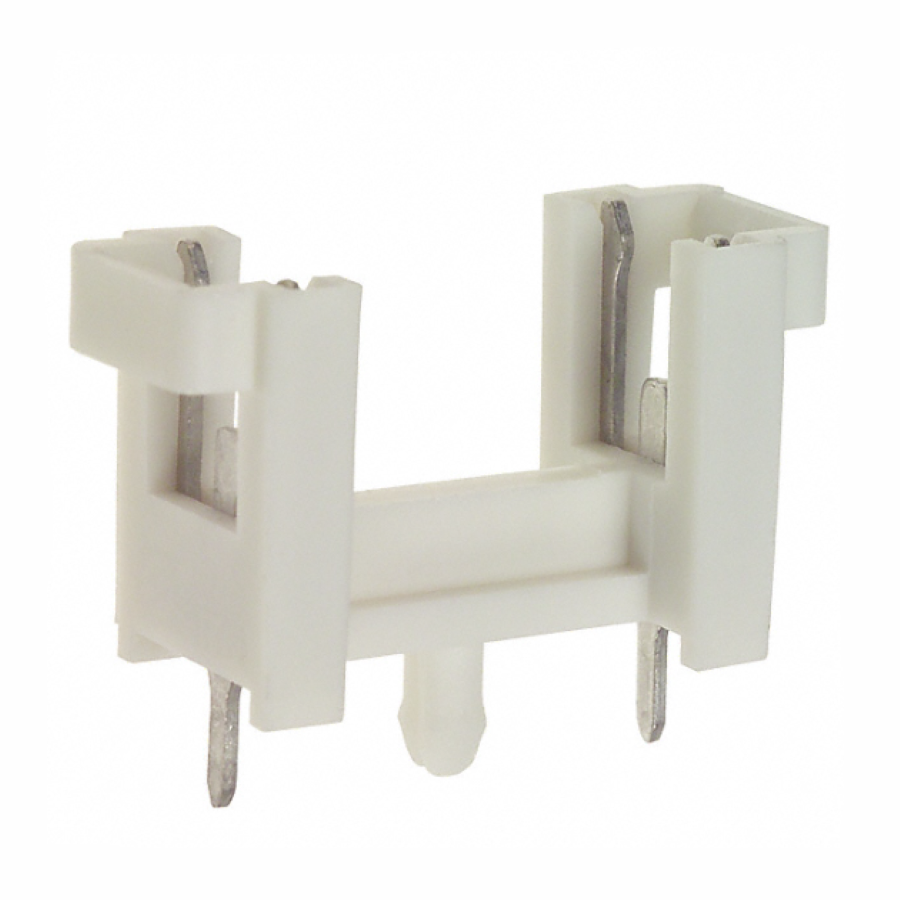

Fuse Holders Through Hole 6.3 A 250 V Illuminated
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 23 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 250 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Type | Cartridge |
| Current Rating | 6.3 A |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Color | White |
| Body Material | Polybutylene, Thermoplastic |
| Number of Poles | 1 |
| Illumination Type | Illuminated |
| Fuse Current | 6.3 A |
| Size | 0.197" Dia x 0.787" L (5 mm x 20 mm) |
| For Use With | 5 mm x 20 mm |
Stock: 1882
Distributors
pcbx
pcbxUnit Price$0.27446
Ext.Price$0.27446
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27446 | $0.27446 |
| 10 | $0.24402 | $2.44020 |
| 50 | $0.21696 | $10.84800 |
| 100 | $0.18826 | $18.82600 |
| 500 | $0.16335 | $81.67500 |
| 1000 | $0.15706 | $157.06000 |
| 3000 | $0.15102 | $453.06000 |
| 5000 | $0.14269 | $713.45000 |
