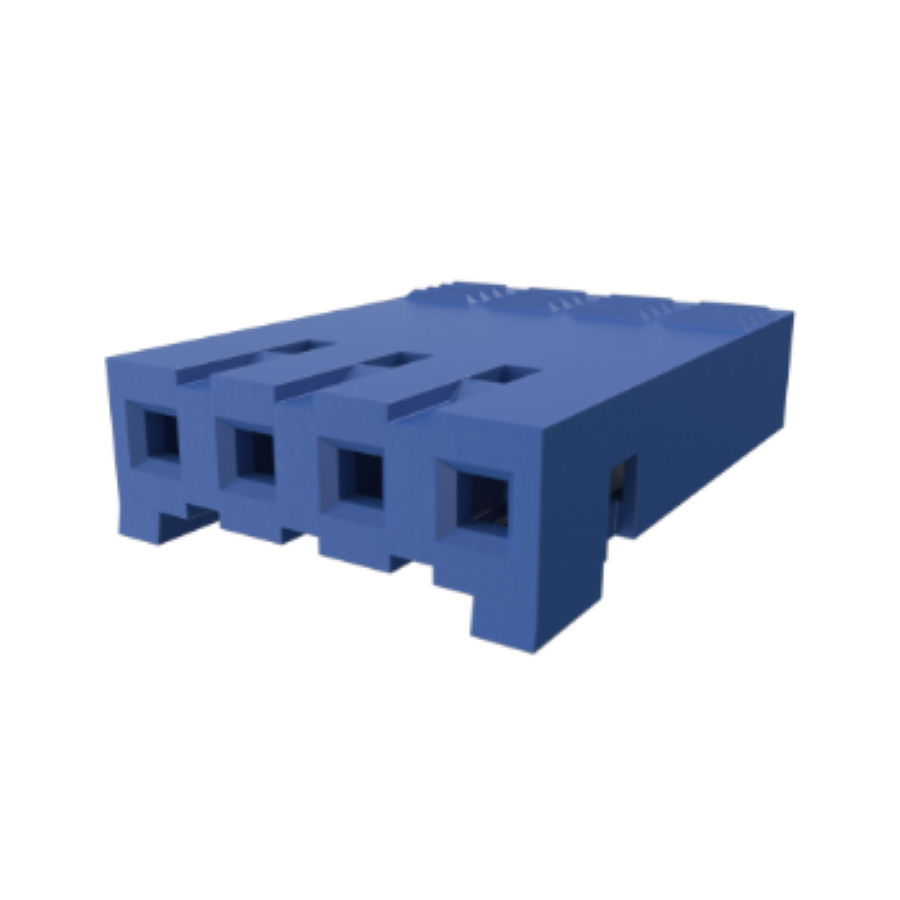

65240-005LF
Manufacturer:
Amphenol
Mfr.Part #:
65240-005LF
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.62 mm |
| Width | 4.05 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 5 |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 14.01 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 GΩ |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Female |
| Number of Contacts | 5 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1000 V (1 kV) |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Blue |
| Schedule B | 8536695050 |
Stock: 839
Distributors
pcbx
pcbxUnit Price$0.27529
Ext.Price$0.27529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27529 | $0.27529 |
| 10 | $0.20433 | $2.04330 |
| 25 | $0.18467 | $4.61675 |
| 50 | $0.18034 | $9.01700 |
| 100 | $0.17611 | $17.61100 |
| 300 | $0.17083 | $51.24900 |
| 500 | $0.16570 | $82.85000 |
| 1000 | $0.16073 | $160.73000 |
| 3000 | $0.14192 | $425.76000 |
