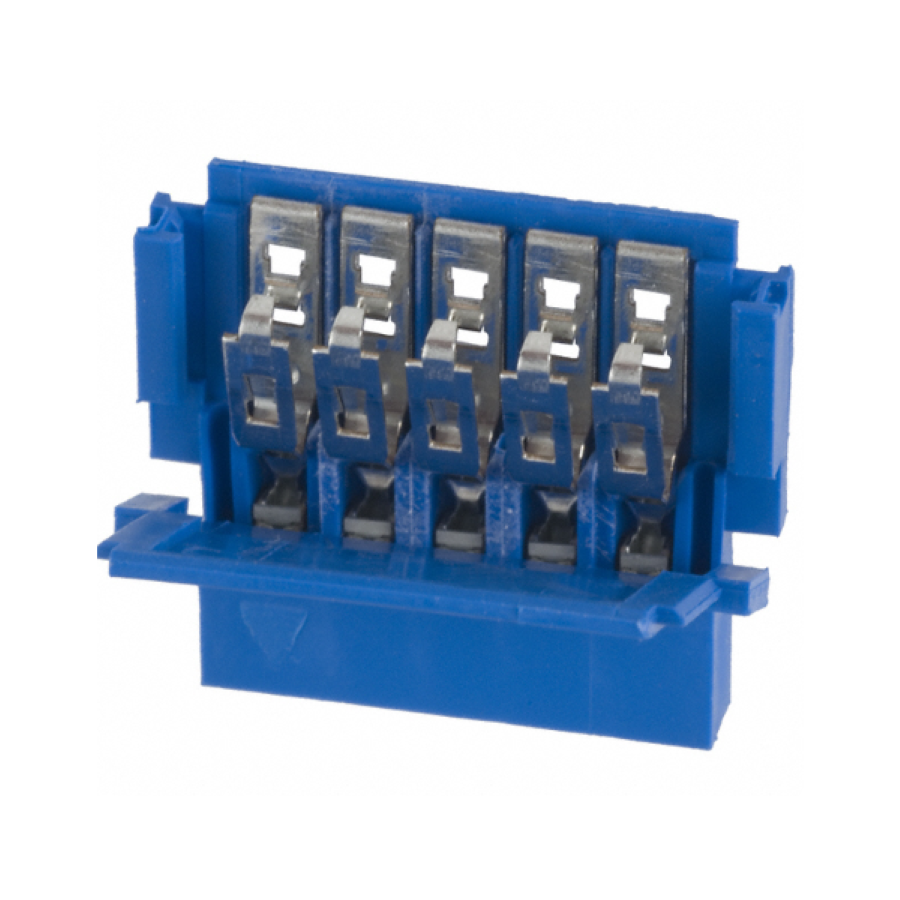

65801-005LF
Manufacturer:
Amphenol
Mfr.Part #:
65801-005LF
Datasheet:
Description:
FFC / FPC Cable, Free Hanging Number of Positions:5 2 A 500 V
| Parameter | Value |
|---|---|
| Length | 17.53 mm |
| Width | 2.54 mm |
| Termination | IDT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Voltage Rating | 500 V |
| Depth | 15.49 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polypropylene |
| Wire/Cable Type | Flat |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.95347
Ext.Price$0.95347
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.95347 | $0.95347 |
| 10 | $0.79210 | $7.92100 |
| 25 | $0.74428 | $18.60700 |
| 50 | $0.69935 | $34.96750 |
| 100 | $0.65713 | $65.71300 |
| 300 | $0.61746 | $185.23800 |
| 500 | $0.58018 | $290.09000 |
| 1000 | $0.54514 | $545.14000 |
