66506-066LF
Manufacturer:
Amphenol
Mfr.Part #:
66506-066LF
Datasheet:
Description:

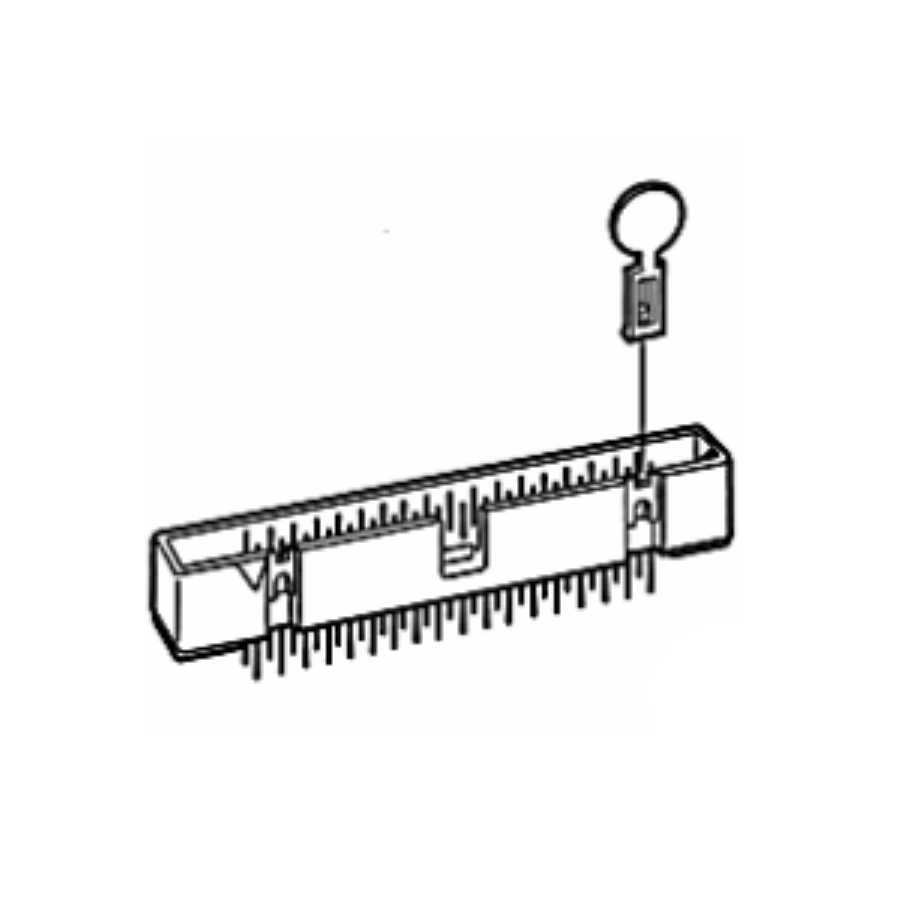

Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 19.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Depth | 8.13 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.67 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Orientation | Straight |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.65 mm |
Stock: 1099
Distributors
pcbx
pcbxUnit Price$0.88822
Ext.Price$0.88822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88822 | $0.88822 |
| 10 | $0.75461 | $7.54610 |
| 25 | $0.71479 | $17.86975 |
| 50 | $0.67707 | $33.85350 |
| 100 | $0.64133 | $64.13300 |
| 300 | $0.60591 | $181.77300 |
| 500 | $0.57244 | $286.22000 |
| 1000 | $0.54511 | $545.11000 |
| 3000 | $0.51503 | $1545.09000 |
| 5000 | $0.48662 | $2433.10000 |
| 10000 | $0.46342 | $4634.20000 |
