67910-0002
Manufacturer:
Molex
Mfr.Part #:
67910-0002
Datasheet:
Description:

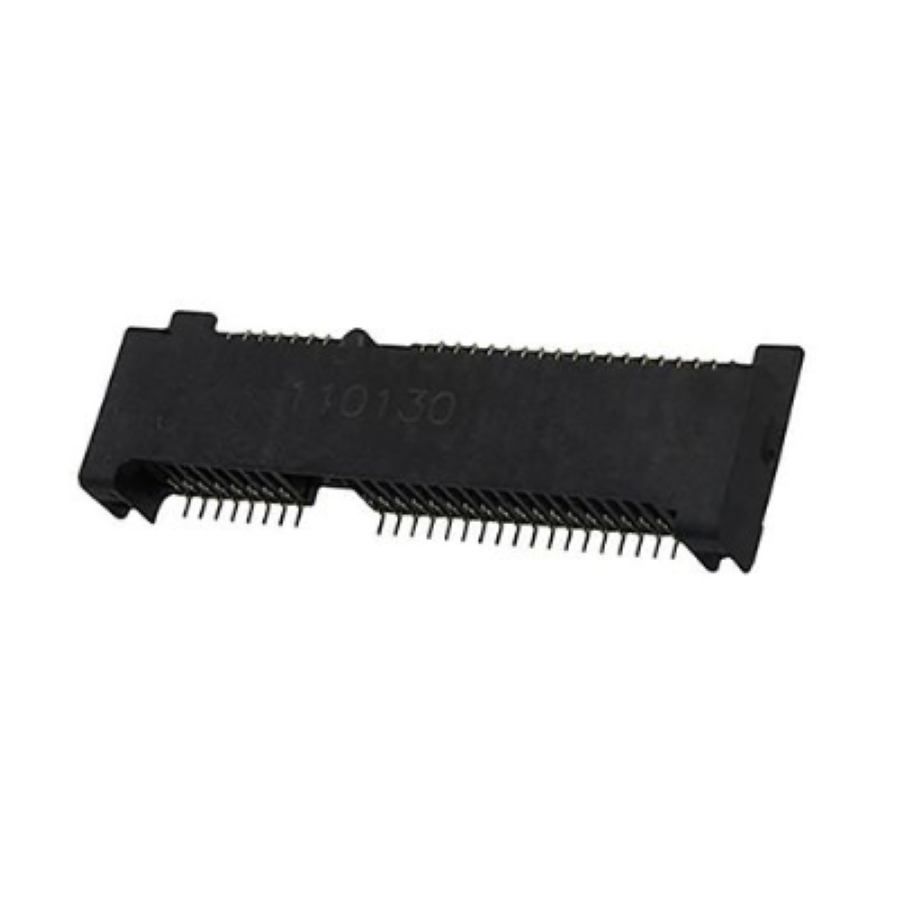

Edgeboard Connectors SMD/SMT Female Right Angle Number of Positions:52
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.25 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 780 µm |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Weight | 1.136986 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 800 µm |
| Current Rating | 2 A |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Color | Black |
| Gender | Female |
| Number of Contacts | 52 |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Card Thickness | 1 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 50 V |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Schedule B | 8536694040 |
| Country of Origin | TW |
| Mounting Angle | Right Angle |
| Card Type | PCI Express Mini Card |
Stock: 3509
Distributors
pcbx
pcbxUnit Price$3.02303
Ext.Price$3.02303
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.02303 | $3.02303 |
| 10 | $2.69132 | $26.91320 |
| 25 | $2.55367 | $63.84175 |
| 50 | $2.46562 | $123.28100 |
| 100 | $2.36559 | $236.55900 |
| 300 | $1.86129 | $558.38700 |
| 500 | $1.46450 | $732.25000 |
| 1000 | $1.27043 | $1270.43000 |
