679100002
Manufacturer:
Molex
Mfr.Part #:
679100002
Datasheet:
Description:

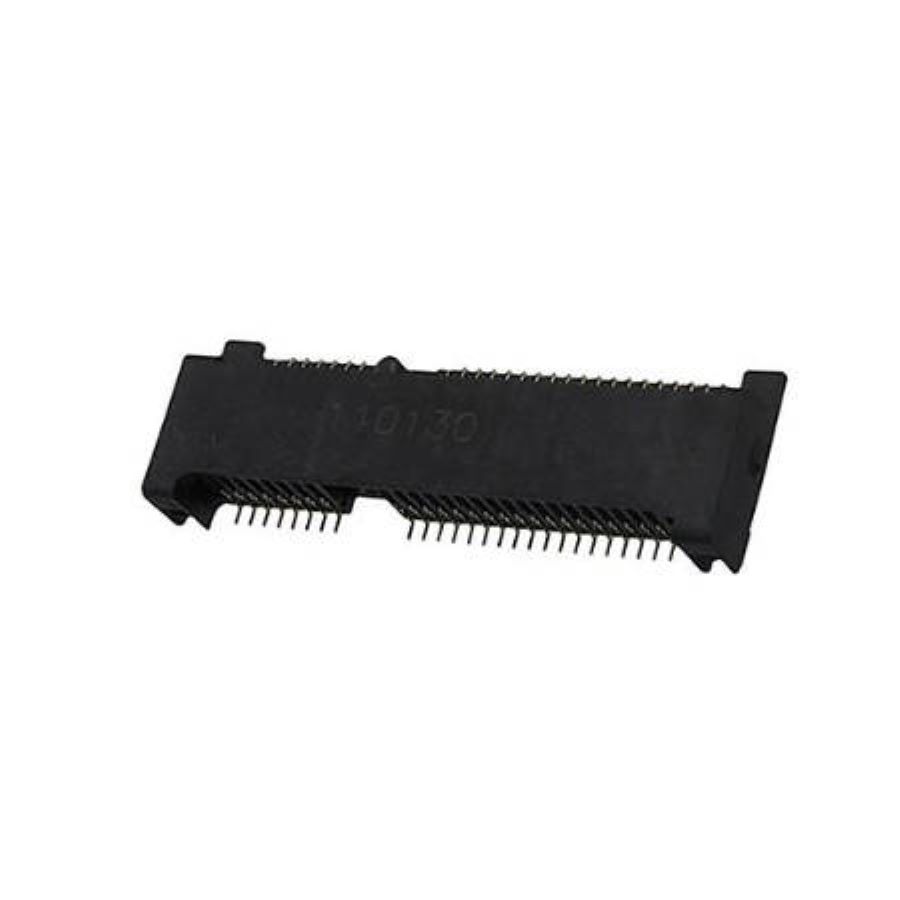

Edgeboard Connectors SMD/SMT Female Right Angle Number of Positions:52
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.25 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 780 µm |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 800 µm |
| Current Rating | 2 A |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Color | Black |
| Gender | Female |
| Number of Contacts | 52 |
| Contact Type | |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Card Thickness | 1 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 50 V |
| Plating | Gold |
| glow wire compliant | |
| Schedule B | 8536694040 |
| Country of Origin | TW |
| Mounting Angle | Right Angle |
| Card Type | PCI Express Mini Card |
Out of Stock
