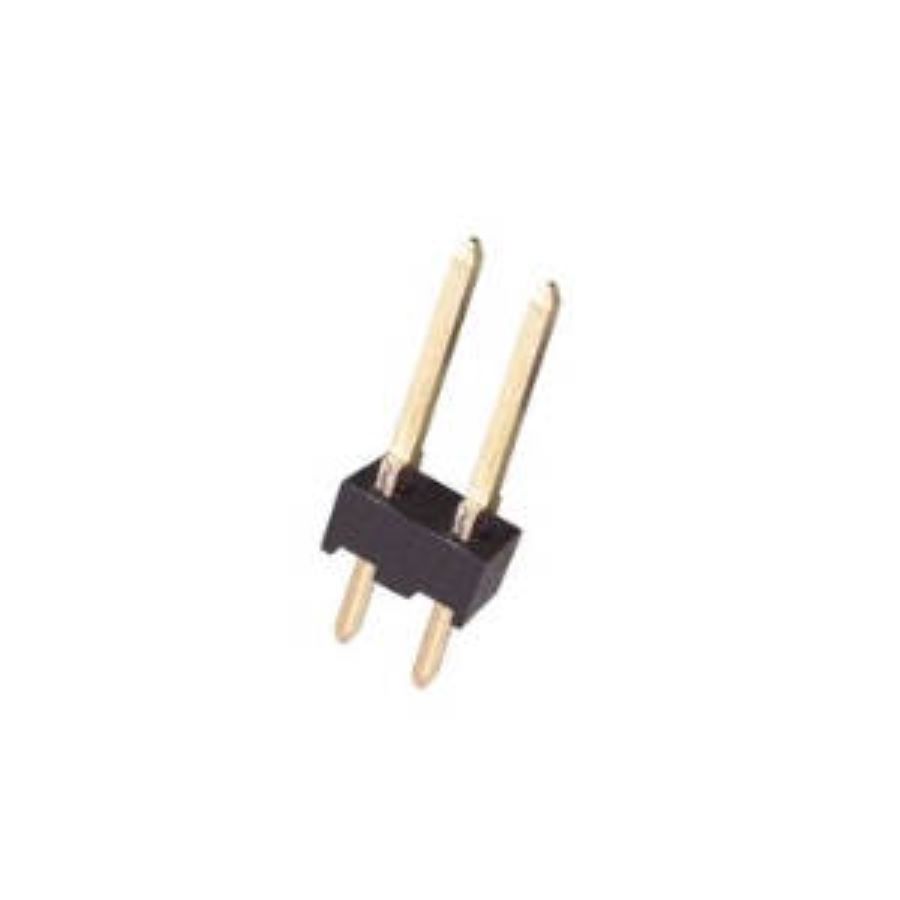

67996-102HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-102HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bag |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 9397
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.09233 | $0.92330 |
| 50 | $0.09176 | $4.58800 |
| 100 | $0.09119 | $9.11900 |
| 500 | $0.09063 | $45.31500 |
| 1000 | $0.08977 | $89.77000 |
| 3000 | $0.08862 | $265.86000 |
| 5000 | $0.08748 | $437.40000 |
| 10000 | $0.08635 | $863.50000 |
| 30000 | $0.07642 | $2292.60000 |
| 50000 | $0.06763 | $3381.50000 |
