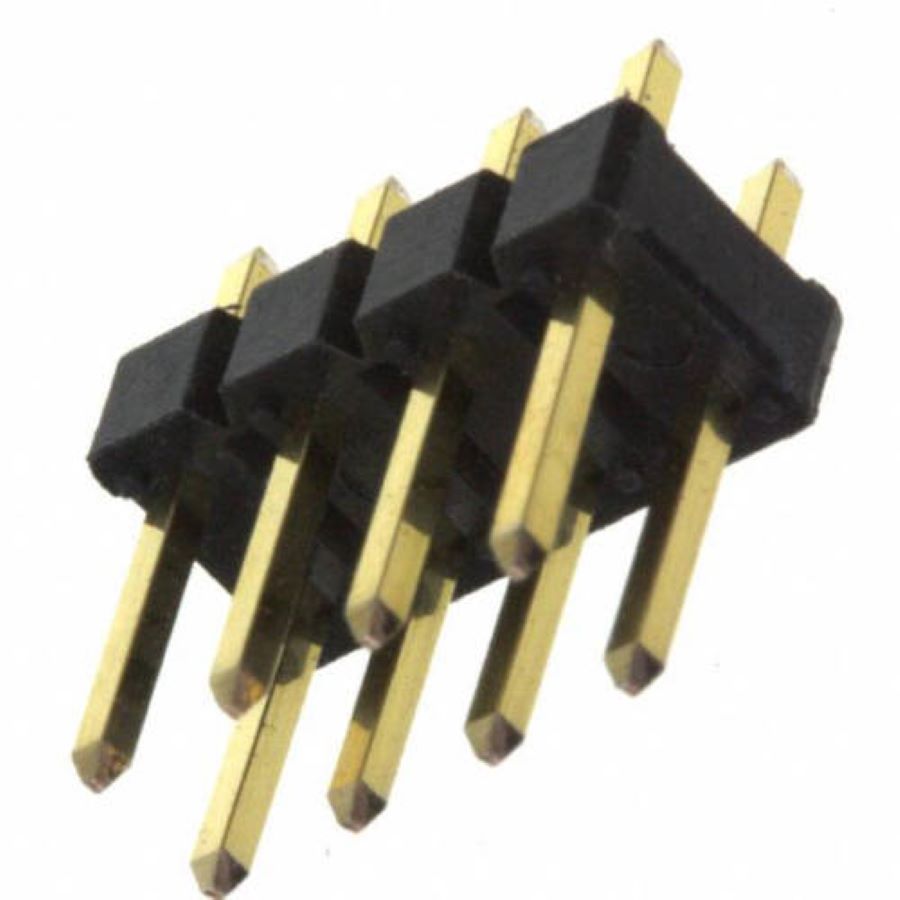

67996-108HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-108HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 2.41 mm |
Stock: 1918
Distributors
pcbx
pcbxUnit Price$0.41914
Ext.Price$0.41914
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41914 | $0.41914 |
| 10 | $0.35786 | $3.57860 |
| 25 | $0.33898 | $8.47450 |
| 50 | $0.32109 | $16.05450 |
| 100 | $0.30415 | $30.41500 |
| 300 | $0.28810 | $86.43000 |
| 500 | $0.27290 | $136.45000 |
| 1000 | $0.25850 | $258.50000 |
| 3000 | $0.24486 | $734.58000 |
| 5000 | $0.23194 | $1159.70000 |
| 10000 | $0.21970 | $2197.00000 |
