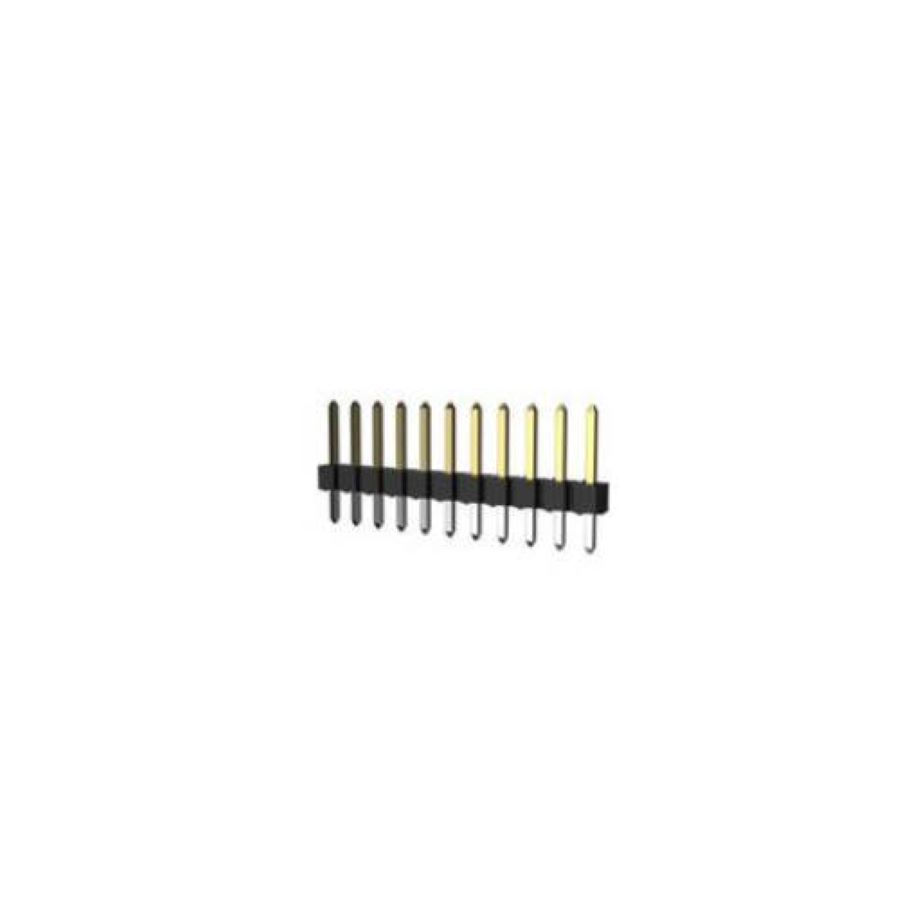

67996-140HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-140HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 478
Distributors
pcbx
pcbxUnit Price$1.27043
Ext.Price$1.27043
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.27043 | $1.27043 |
| 10 | $1.25760 | $12.57600 |
| 25 | $1.18926 | $29.73150 |
| 50 | $1.12464 | $56.23200 |
| 100 | $1.06353 | $106.35300 |
| 300 | $1.05084 | $315.25200 |
| 500 | $1.03830 | $519.15000 |
| 1000 | $1.02591 | $1025.91000 |
