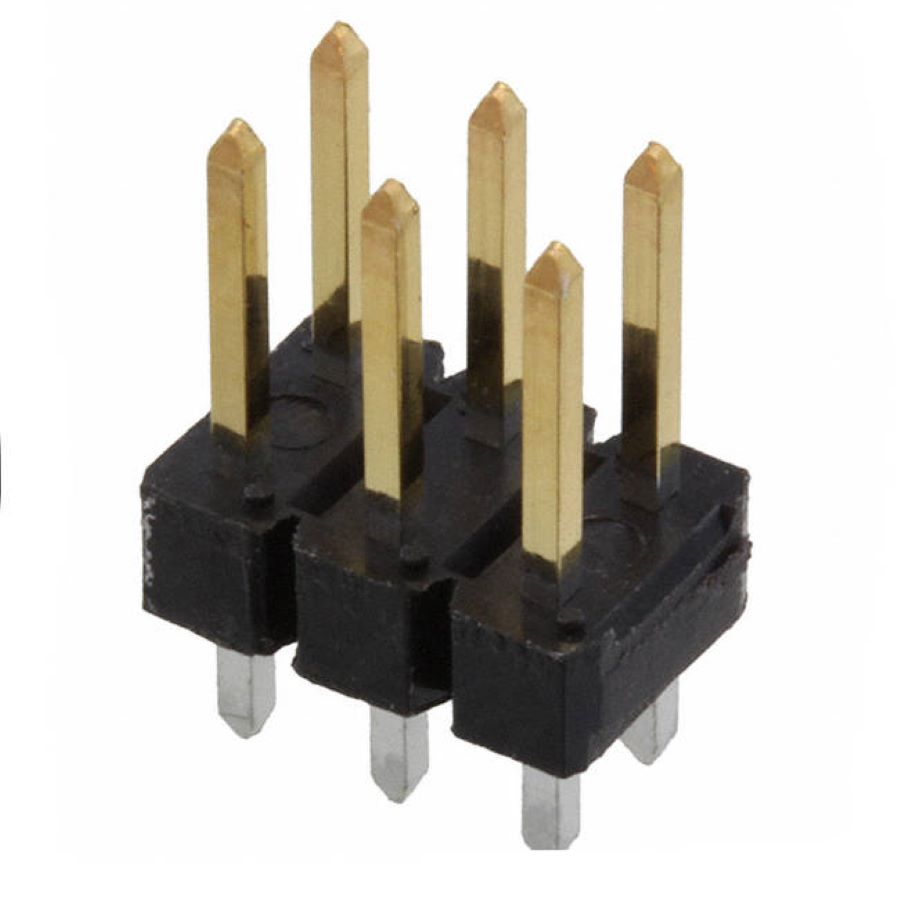

67996-206HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-206HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 6 |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 2267
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.26076 | $2.60760 |
| 25 | $0.25733 | $6.43325 |
| 50 | $0.25432 | $12.71600 |
| 100 | $0.25135 | $25.13500 |
| 300 | $0.23392 | $70.17600 |
| 500 | $0.21770 | $108.85000 |
| 1000 | $0.20260 | $202.60000 |
| 3000 | $0.18855 | $565.65000 |
| 5000 | $0.17547 | $877.35000 |
| 10000 | $0.16329 | $1632.90000 |
