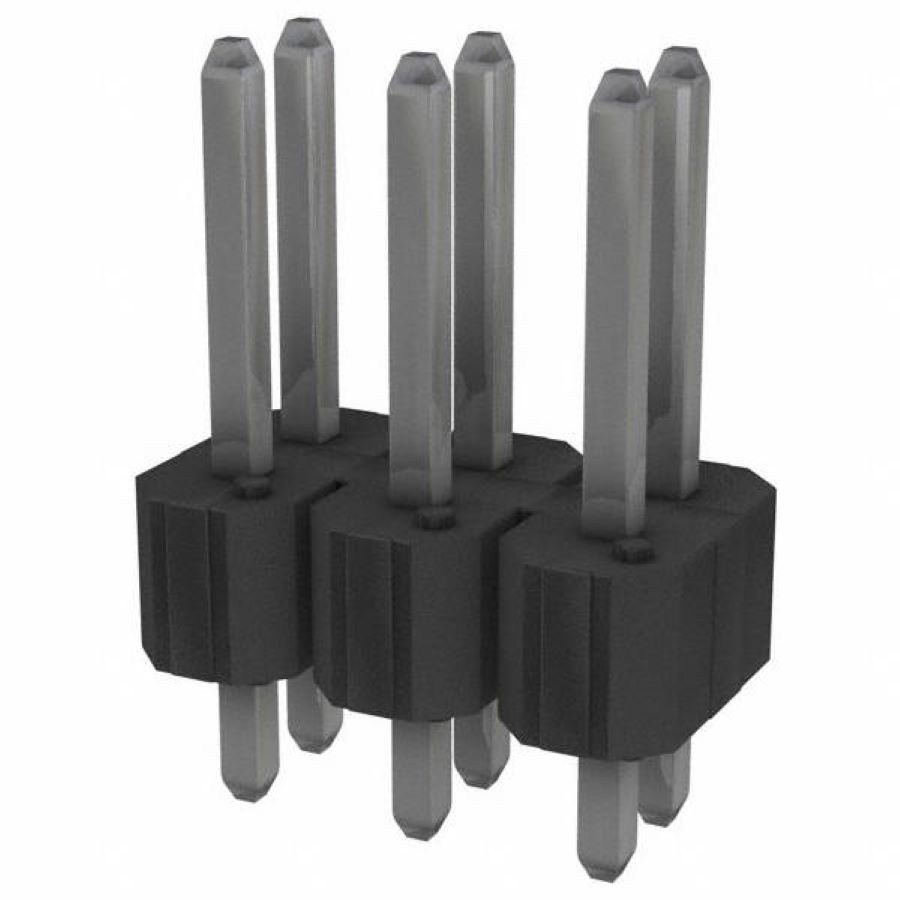

67996-406HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-406HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Gender | Male |
| Number of Contacts | 6 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 9391
Distributors
pcbx
pcbxUnit Price$0.22454
Ext.Price$0.22454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22454 | $0.22454 |
| 10 | $0.19997 | $1.99970 |
| 50 | $0.17808 | $8.90400 |
| 100 | $0.14991 | $14.99100 |
| 500 | $0.12620 | $63.10000 |
| 1000 | $0.12036 | $120.36000 |
| 3000 | $0.11479 | $344.37000 |
| 5000 | $0.10947 | $547.35000 |
