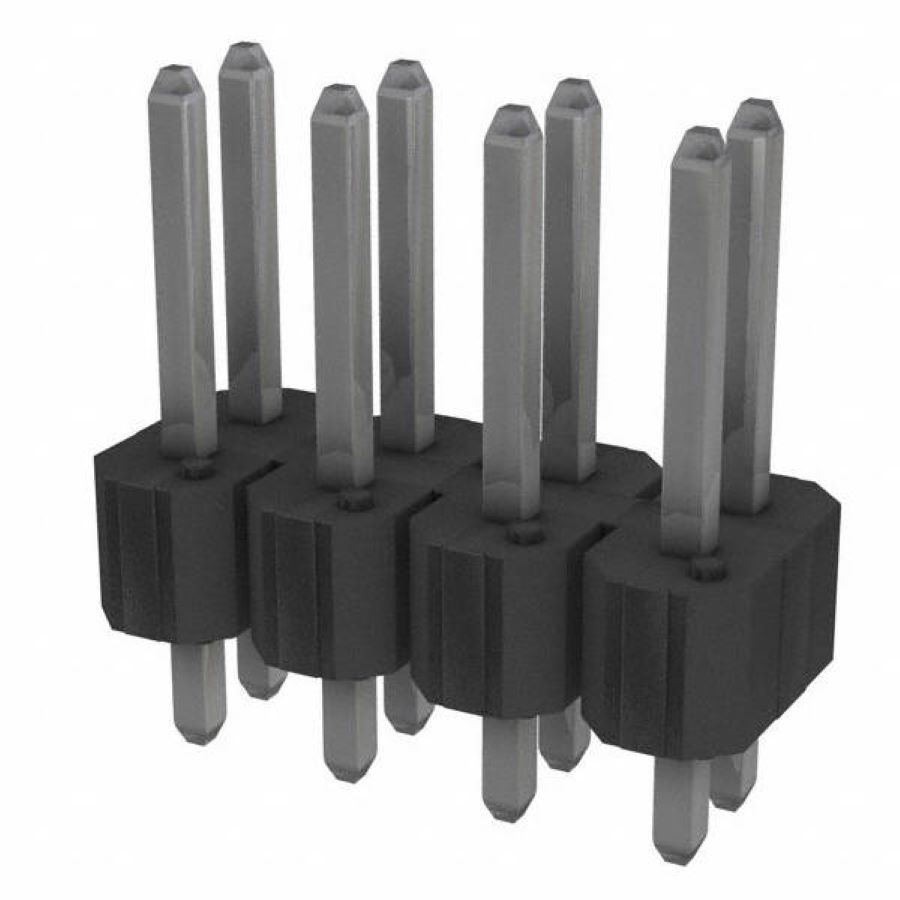

67996-408HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-408HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 2.41 mm |
Stock: 3575
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.17526 | $1.75260 |
| 50 | $0.16239 | $8.11950 |
| 100 | $0.15047 | $15.04700 |
| 500 | $0.13891 | $69.45500 |
| 1000 | $0.12823 | $128.23000 |
| 3000 | $0.11838 | $355.14000 |
| 5000 | $0.10928 | $546.40000 |
| 10000 | $0.10088 | $1008.80000 |
