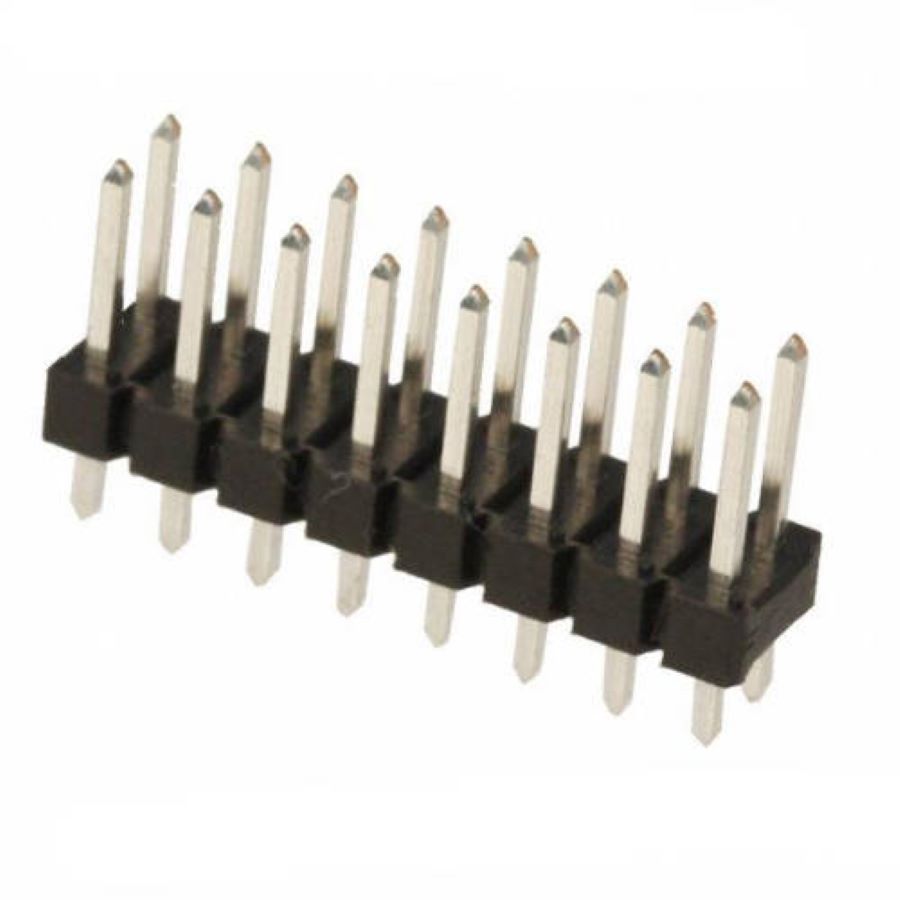

67996-416HLF
Manufacturer:
Amphenol
Mfr.Part #:
67996-416HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 2.41 mm |
Stock: 3256
Distributors
pcbx
pcbxUnit Price$0.33770
Ext.Price$0.33770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33770 | $0.33770 |
| 10 | $0.29153 | $2.91530 |
| 25 | $0.28085 | $7.02125 |
| 50 | $0.27057 | $13.52850 |
| 100 | $0.26066 | $26.06600 |
| 300 | $0.25112 | $75.33600 |
| 500 | $0.24192 | $120.96000 |
| 1000 | $0.23306 | $233.06000 |
| 3000 | $0.22453 | $673.59000 |
| 5000 | $0.21630 | $1081.50000 |
