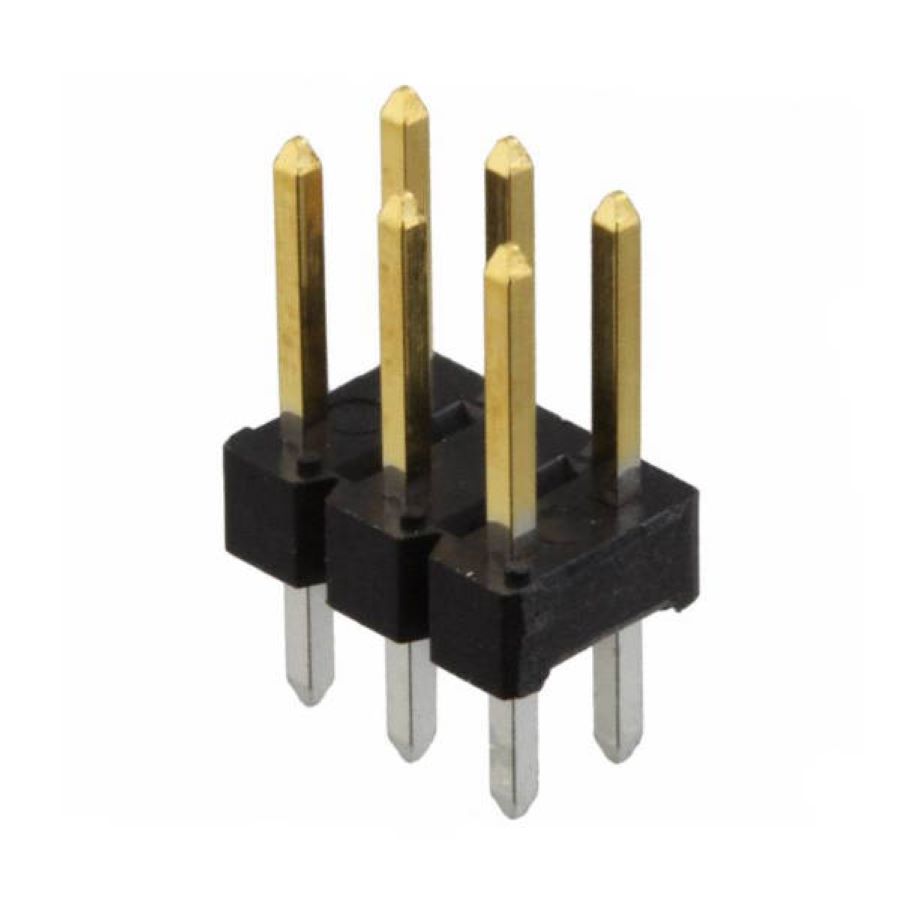

67997-206HLF
Manufacturer:
Amphenol
Mfr.Part #:
67997-206HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 8.71 mm |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 3.05 mm |
Stock: 469
Distributors
pcbx
pcbxUnit Price$0.45898
Ext.Price$0.45898
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45898 | $0.45898 |
| 10 | $0.36835 | $3.68350 |
| 25 | $0.32909 | $8.22725 |
| 50 | $0.29401 | $14.70050 |
| 100 | $0.26268 | $26.26800 |
| 300 | $0.25193 | $75.57900 |
| 500 | $0.24163 | $120.81500 |
| 1000 | $0.22814 | $228.14000 |
