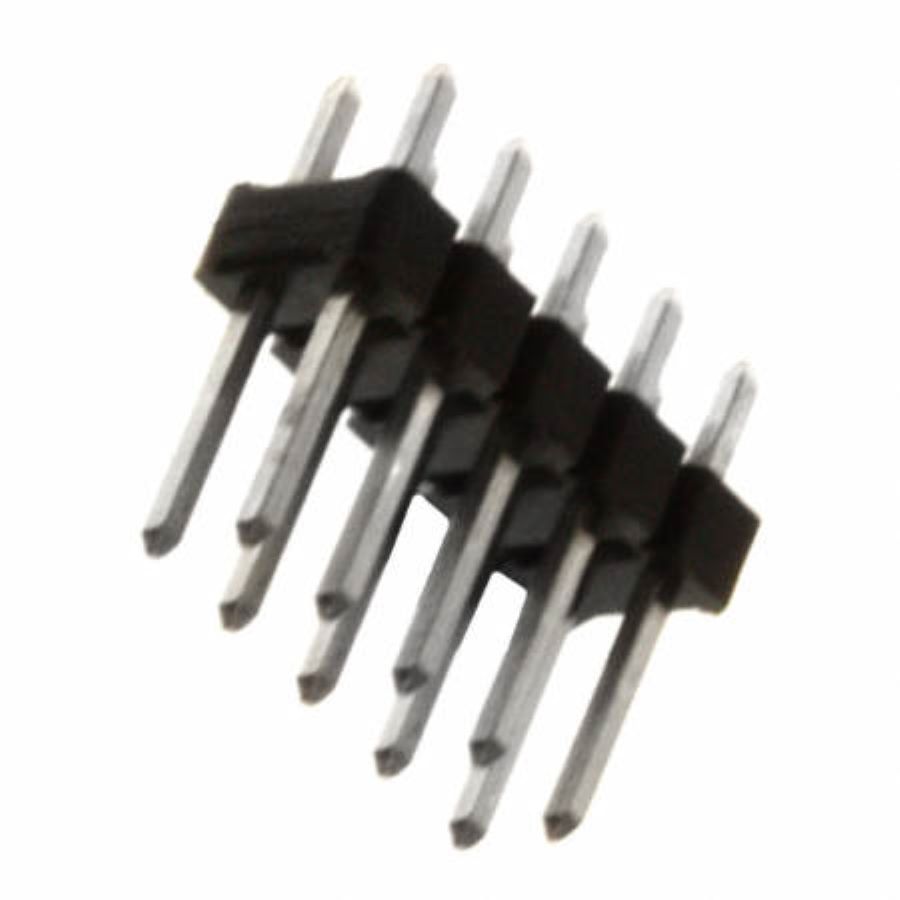

67997-410HLF
Manufacturer:
Amphenol
Mfr.Part #:
67997-410HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 5 GΩ |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 924
Distributors
pcbx
pcbxUnit Price$0.28685
Ext.Price$0.28685
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28685 | $0.28685 |
| 10 | $0.25547 | $2.55470 |
| 50 | $0.22752 | $11.37600 |
| 100 | $0.20529 | $20.52900 |
| 500 | $0.18524 | $92.62000 |
| 1000 | $0.16714 | $167.14000 |
| 3000 | $0.15082 | $452.46000 |
