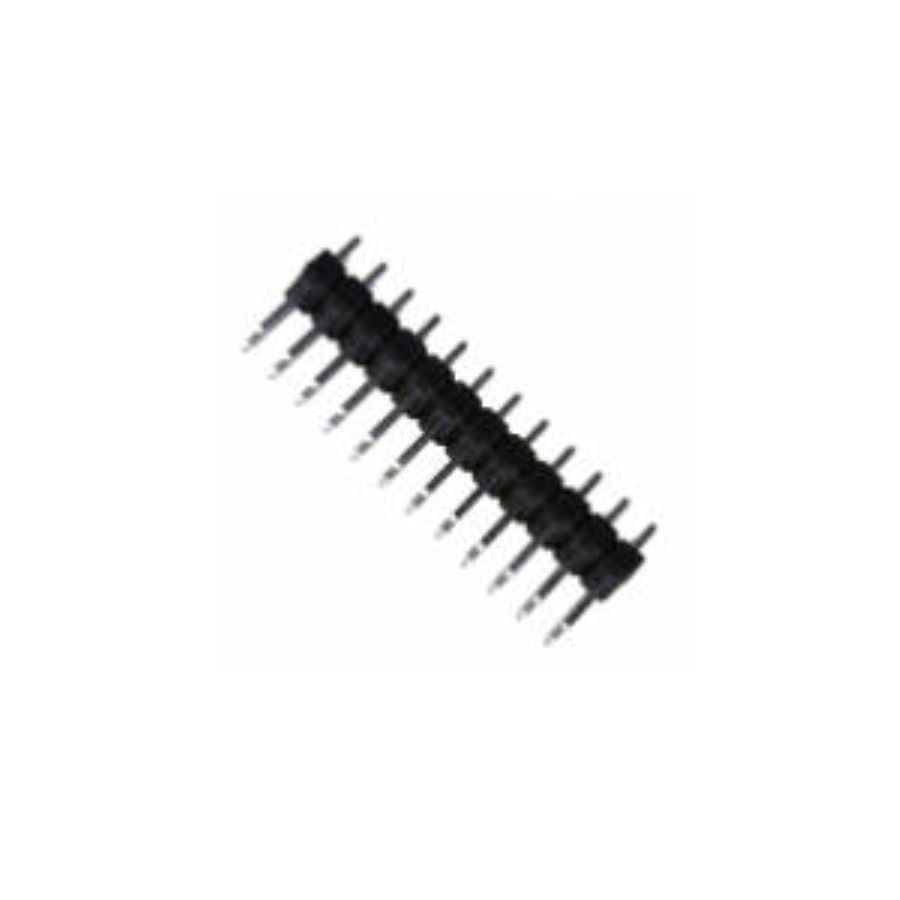

67997-424HLF
Manufacturer:
Amphenol
Mfr.Part #:
67997-424HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:24 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 30.48 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bag |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 24 |
| Connector Type | Male Pin |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 2484
Distributors
pcbx
pcbxUnit Price$0.62569
Ext.Price$0.62569
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62569 | $0.62569 |
| 10 | $0.53437 | $5.34370 |
| 25 | $0.50612 | $12.65300 |
| 50 | $0.47936 | $23.96800 |
| 100 | $0.45402 | $45.40200 |
| 300 | $0.43002 | $129.00600 |
| 500 | $0.40729 | $203.64500 |
| 1000 | $0.38574 | $385.74000 |
| 3000 | $0.36445 | $1093.35000 |
| 5000 | $0.34433 | $1721.65000 |
| 10000 | $0.32791 | $3279.10000 |
