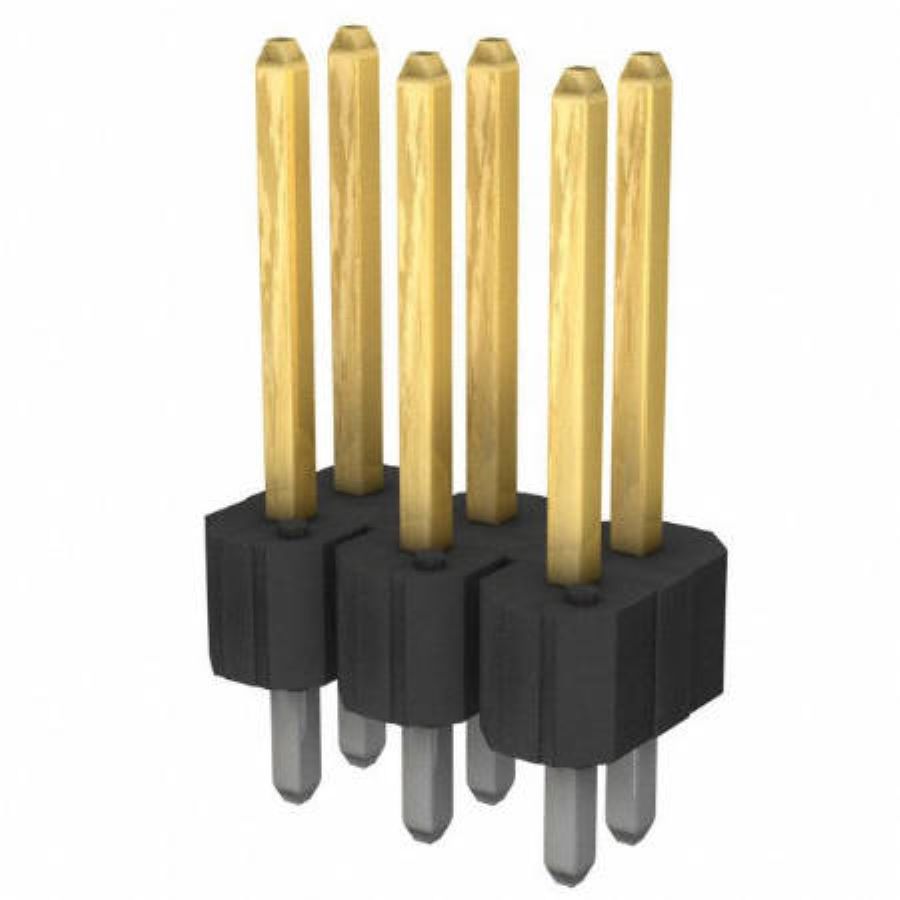

67998-106HLF
Manufacturer:
Amphenol
Mfr.Part #:
67998-106HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | GXT, Gold |
| Lead Length | 2.72 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 8.0772 mm |
| Contact Gender | Male |
| Mating Post Length | 8.08 mm |
| Termination Post Length | 2.72 mm |
Stock: 211
Distributors
pcbx
pcbxUnit Price$0.35052
Ext.Price$0.35052
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35052 | $0.35052 |
| 10 | $0.30008 | $3.00080 |
| 25 | $0.28640 | $7.16000 |
| 50 | $0.26876 | $13.43800 |
| 100 | $0.25220 | $25.22000 |
| 300 | $0.22997 | $68.99100 |
| 500 | $0.22082 | $110.41000 |
| 1000 | $0.21203 | $212.03000 |
