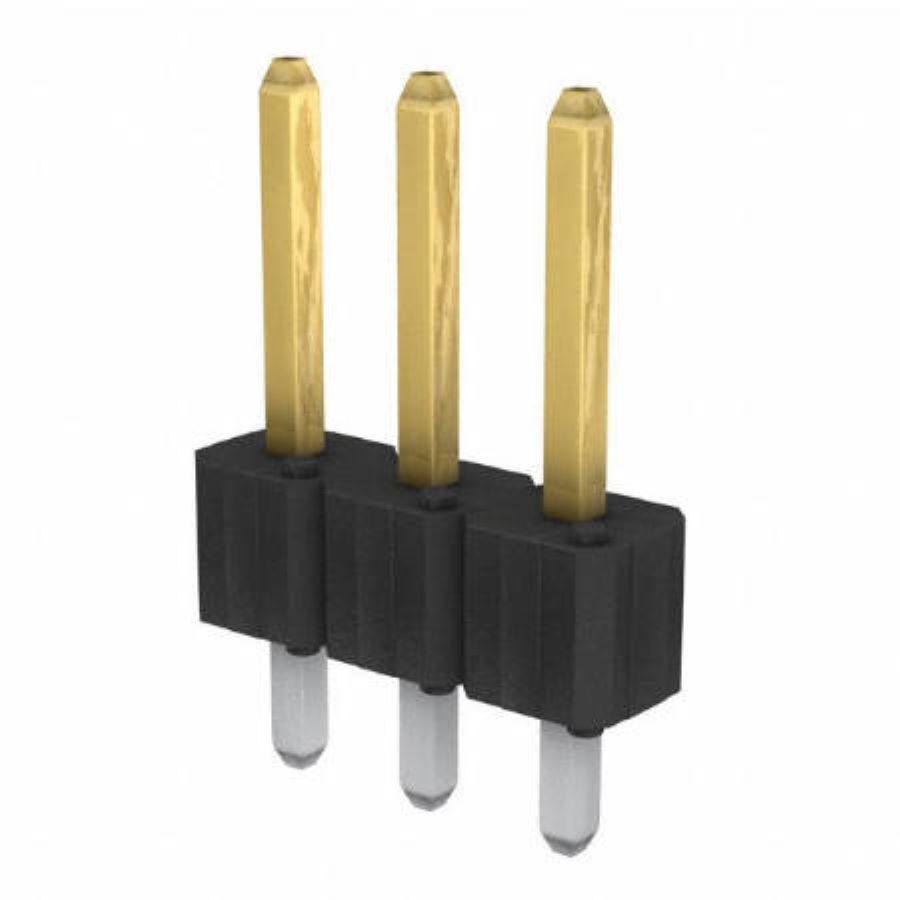

68000-103HLF
Manufacturer:
Amphenol
Mfr.Part #:
68000-103HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 3640
Distributors
pcbx
pcbxUnit Price$0.24883
Ext.Price$0.24883
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24883 | $0.24883 |
| 10 | $0.22646 | $2.26460 |
| 50 | $0.20611 | $10.30550 |
| 100 | $0.18102 | $18.10200 |
| 500 | $0.15898 | $79.49000 |
| 1000 | $0.15384 | $153.84000 |
| 3000 | $0.14887 | $446.61000 |
| 5000 | $0.14406 | $720.30000 |
