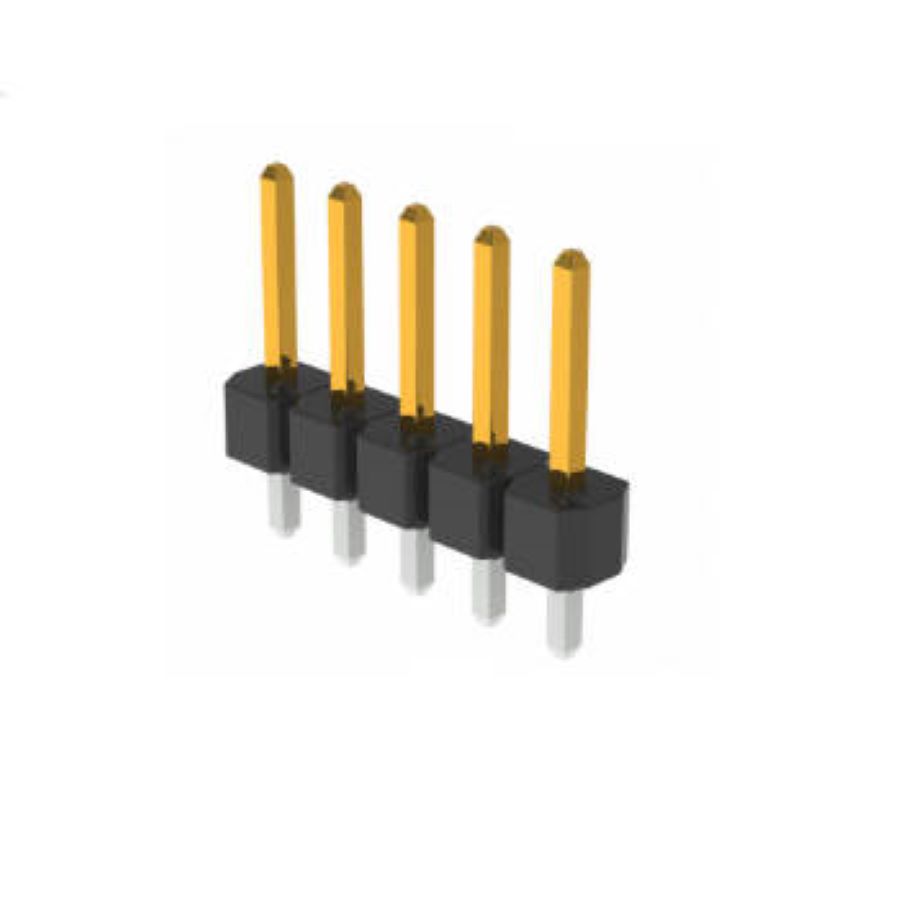

68000-105HLF
Manufacturer:
Amphenol
Mfr.Part #:
68000-105HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 4920
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.25135 | $2.51350 |
| 25 | $0.24109 | $6.02725 |
| 50 | $0.23105 | $11.55250 |
| 100 | $0.22143 | $22.14300 |
| 300 | $0.21065 | $63.19500 |
| 500 | $0.20040 | $100.20000 |
| 1000 | $0.19065 | $190.65000 |
| 3000 | $0.18074 | $542.22000 |
| 5000 | $0.17135 | $856.75000 |
| 10000 | $0.16244 | $1624.40000 |
