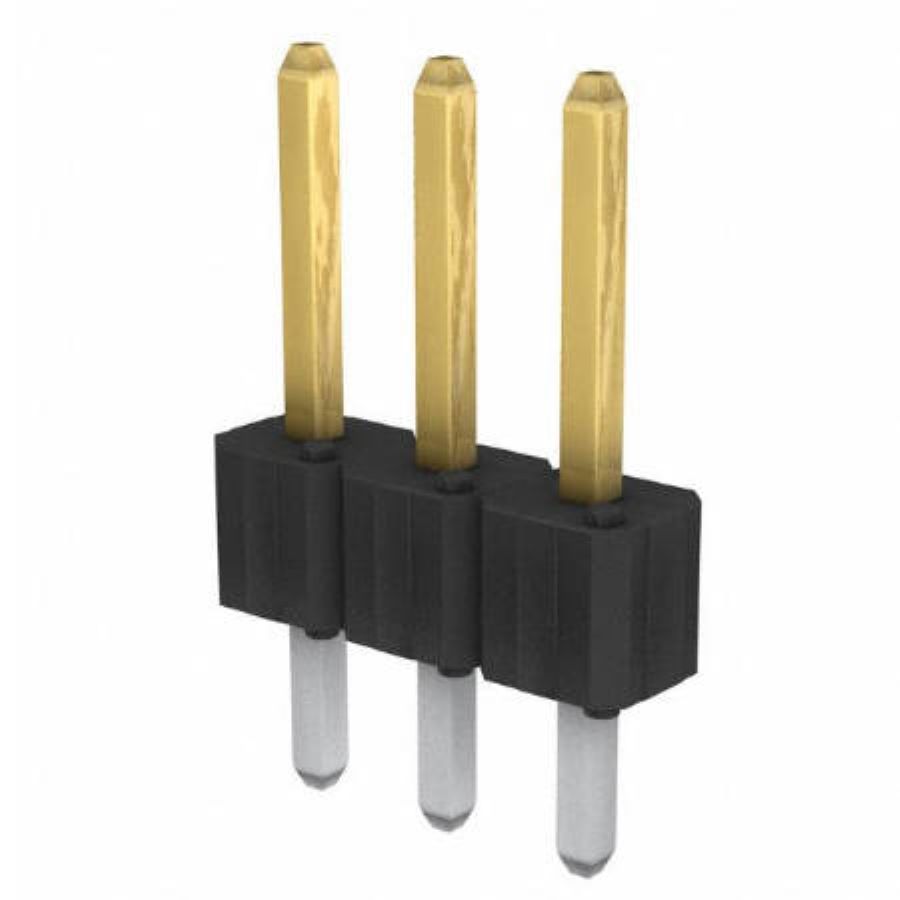

68001-103HLF
Manufacturer:
Amphenol
Mfr.Part #:
68001-103HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.41 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 7106
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.14277 | $1.42770 |
| 50 | $0.13945 | $6.97250 |
| 100 | $0.13621 | $13.62100 |
| 500 | $0.13304 | $66.52000 |
| 1000 | $0.12995 | $129.95000 |
| 3000 | $0.11627 | $348.81000 |
| 5000 | $0.11368 | $568.40000 |
| 10000 | $0.11114 | $1111.40000 |
