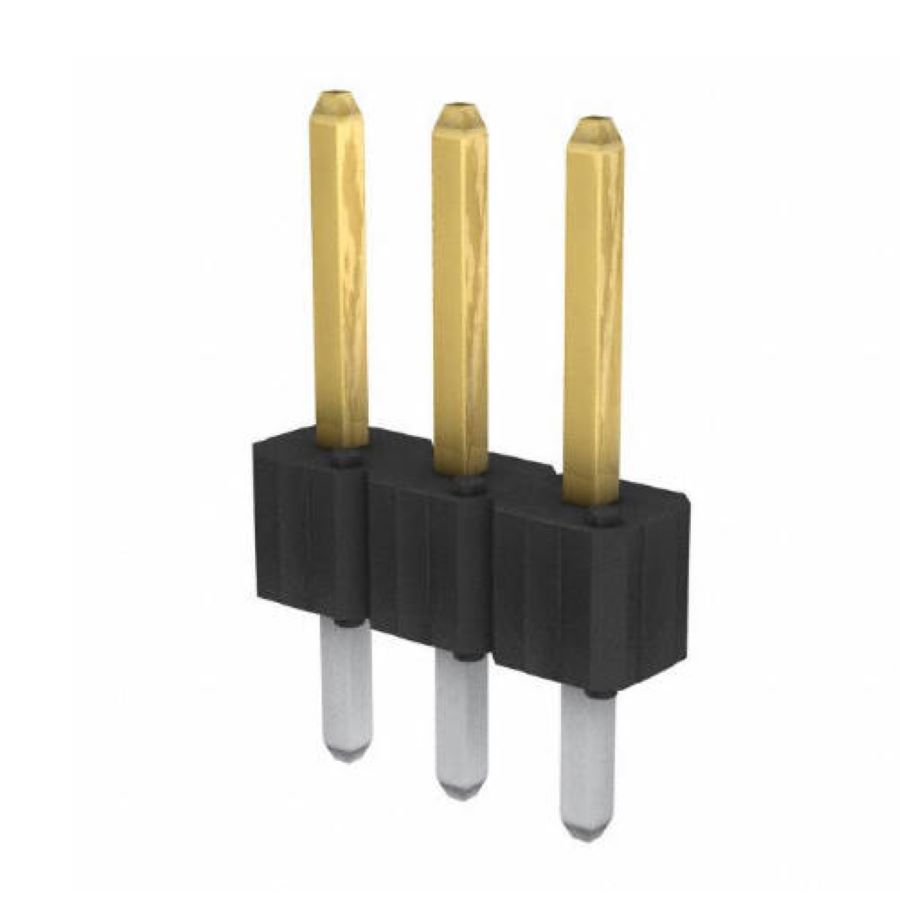

68001-203HLF
Manufacturer:
Amphenol
Mfr.Part #:
68001-203HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 3.05 mm |
Stock: 5985
Distributors
pcbx
pcbxUnit Price$0.19757
Ext.Price$0.19757
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19757 | $0.19757 |
| 10 | $0.17393 | $1.73930 |
| 50 | $0.15312 | $7.65600 |
| 100 | $0.13069 | $13.06900 |
| 500 | $0.11155 | $55.77500 |
| 1000 | $0.10587 | $105.87000 |
| 3000 | $0.10047 | $301.41000 |
| 5000 | $0.09535 | $476.75000 |
