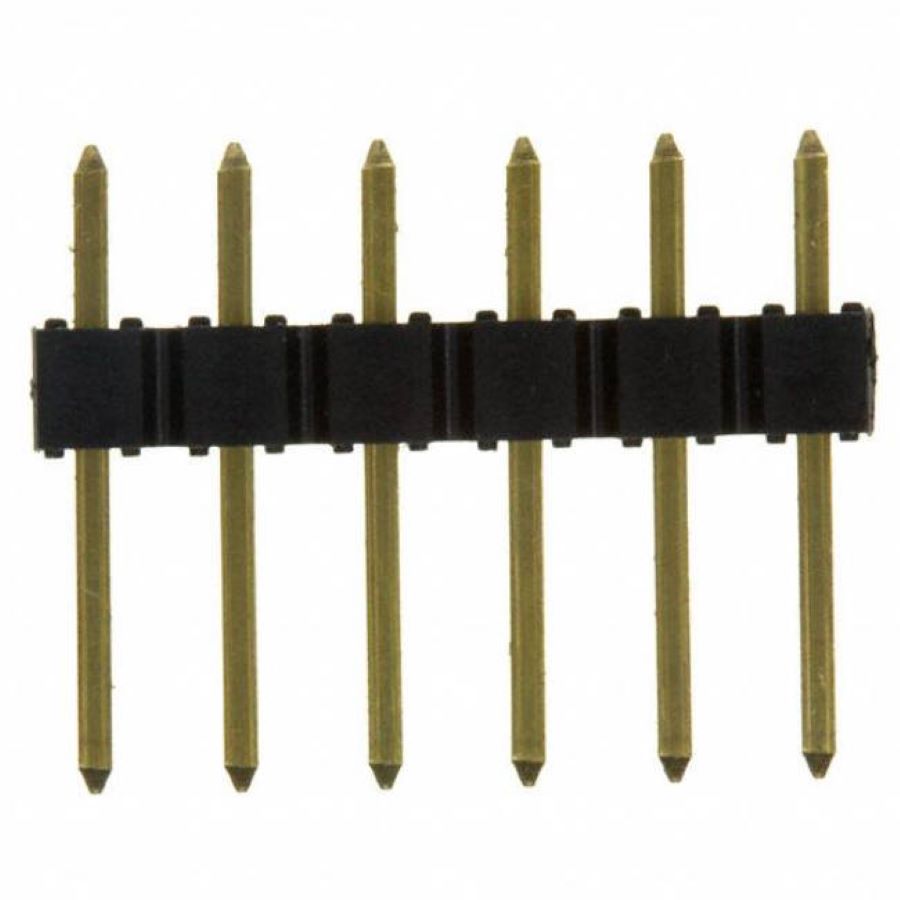

68001-206HLF
Manufacturer:
Amphenol
Mfr.Part #:
68001-206HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | GXT, Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 4799
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.17355 | $1.73550 |
| 25 | $0.17124 | $4.28100 |
| 50 | $0.16896 | $8.44800 |
| 100 | $0.16671 | $16.67100 |
| 300 | $0.16527 | $49.58100 |
| 500 | $0.16385 | $81.92500 |
| 1000 | $0.16244 | $162.44000 |
| 3000 | $0.16158 | $484.74000 |
| 5000 | $0.16072 | $803.60000 |
| 10000 | $0.15987 | $1598.70000 |
