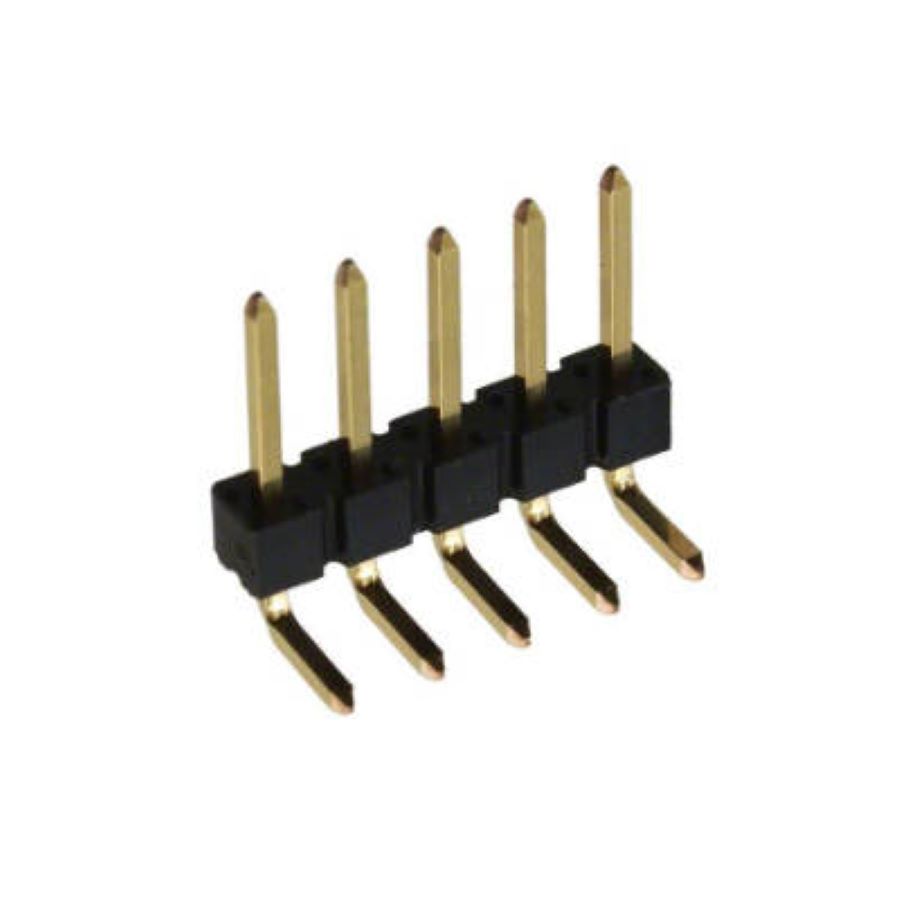

68016-205HLF
Manufacturer:
Amphenol
Mfr.Part #:
68016-205HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 9.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | GXT, Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 3499
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.27956 | $2.79560 |
| 25 | $0.21459 | $5.36475 |
| 50 | $0.21416 | $10.70800 |
| 100 | $0.21373 | $21.37300 |
