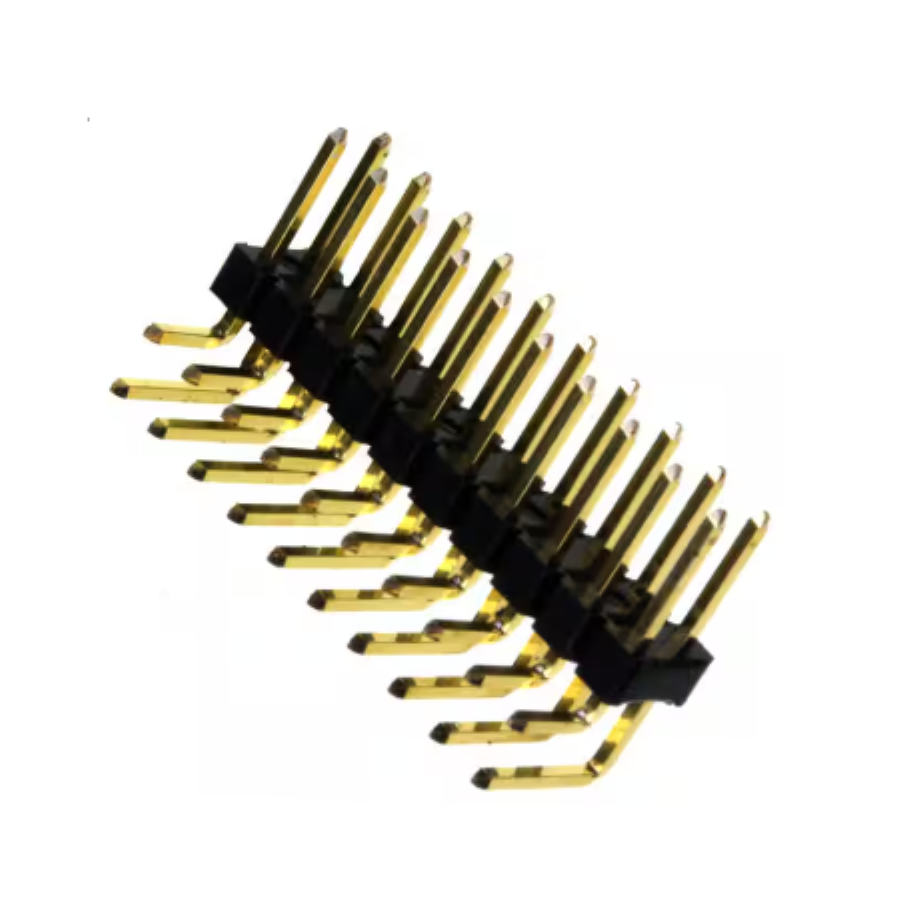

68021-212HLF
Manufacturer:
Amphenol
Mfr.Part #:
68021-212HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Radiation Hardening | No |
| Insulation Resistance | 5 GΩ |
| Contact Plating | GXT, Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 3.05 mm |
| RoHS | Compliant |
Stock: 662
Distributors
pcbx
pcbxUnit Price$0.74464
Ext.Price$0.74464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74464 | $0.74464 |
| 10 | $0.60614 | $6.06140 |
| 25 | $0.57537 | $14.38425 |
| 50 | $0.57195 | $28.59750 |
| 100 | $0.56426 | $56.42600 |
| 300 | $0.49309 | $147.92700 |
| 500 | $0.43089 | $215.44500 |
| 1000 | $0.40010 | $400.10000 |
