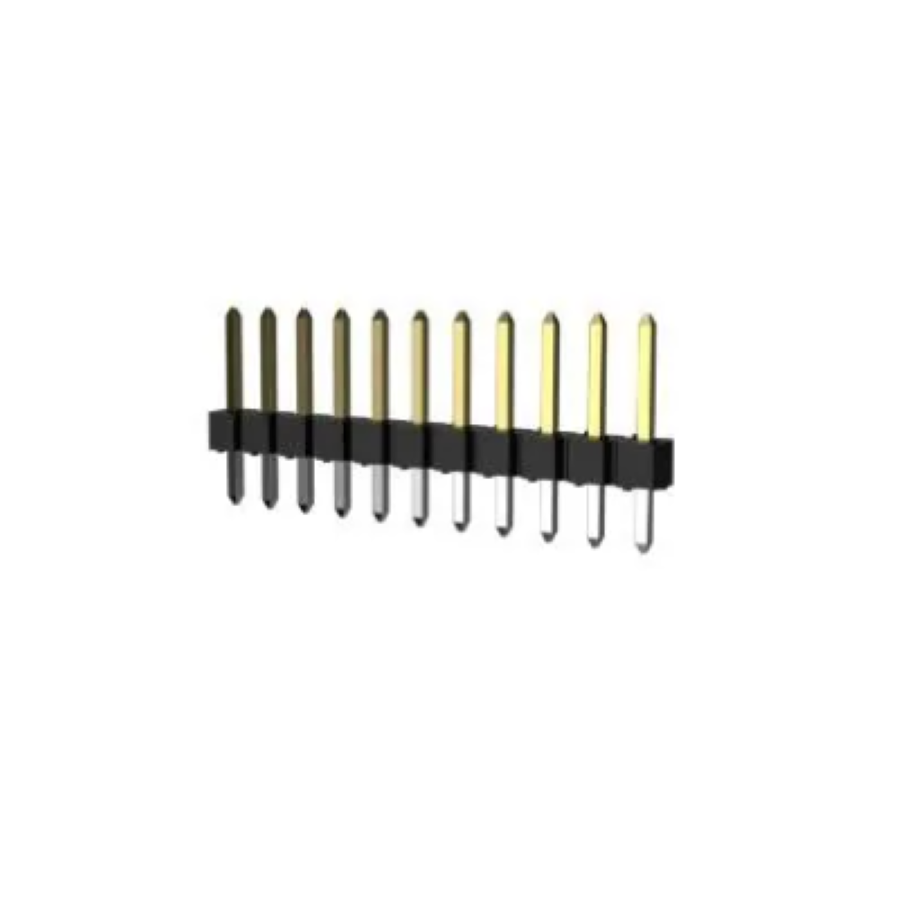

68602-440HLF
Manufacturer:
Amphenol
Mfr.Part #:
68602-440HLF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bag |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 3.81 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 3.81 mm |
Stock: 1367
Distributors
pcbx
pcbxUnit Price$0.83829
Ext.Price$0.83829
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83829 | $0.83829 |
| 10 | $0.71330 | $7.13300 |
| 25 | $0.67561 | $16.89025 |
| 50 | $0.63992 | $31.99600 |
| 100 | $0.60611 | $60.61100 |
| 300 | $0.57263 | $171.78900 |
| 500 | $0.54101 | $270.50500 |
| 1000 | $0.51519 | $515.19000 |
| 3000 | $0.48676 | $1460.28000 |
| 5000 | $0.45990 | $2299.50000 |
| 10000 | $0.43797 | $4379.70000 |
