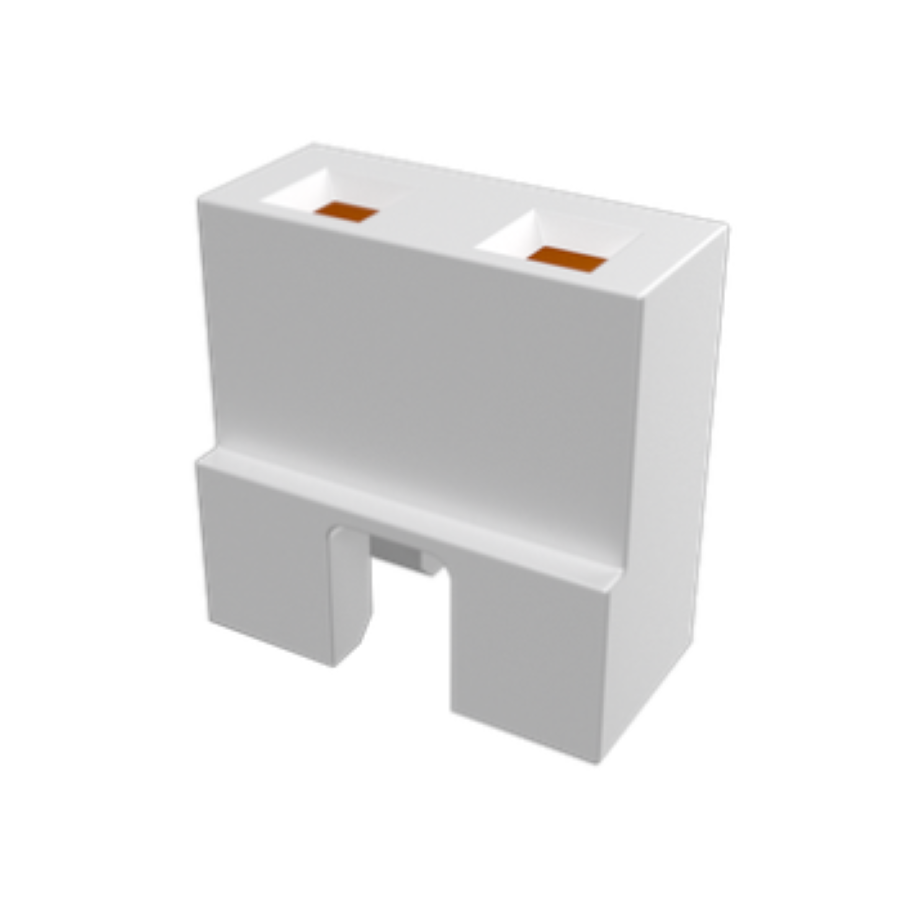

68786-202LF
Manufacturer:
Amphenol
Mfr.Part #:
68786-202LF
Datasheet:
Description:
Headers and Wire Housings Free Hanging (In-Line) Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.03 mm |
| Width | 5.08 mm |
| Termination | Through Hole |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 800 V |
| Height | 5.08 mm |
| Material | Glass, PBT |
| Packaging | Bulk |
| Voltage Rating | 800 V |
| Depth | 2.49 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | White |
| Gender | Female |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 800 V |
| Housing Color | Black |
| Contact Gender | Female |
| Mating Post Length | |
| Termination Post Length |
Stock: 16483
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12739 | $1.27390 |
| 50 | $0.11240 | $5.62000 |
| 100 | $0.09917 | $9.91700 |
| 500 | $0.09050 | $45.25000 |
| 1000 | $0.08259 | $82.59000 |
| 3000 | $0.07883 | $236.49000 |
