6TPE220MAP
Manufacturer:
Panasonic
Mfr.Part #:
6TPE220MAP
Datasheet:
Description:

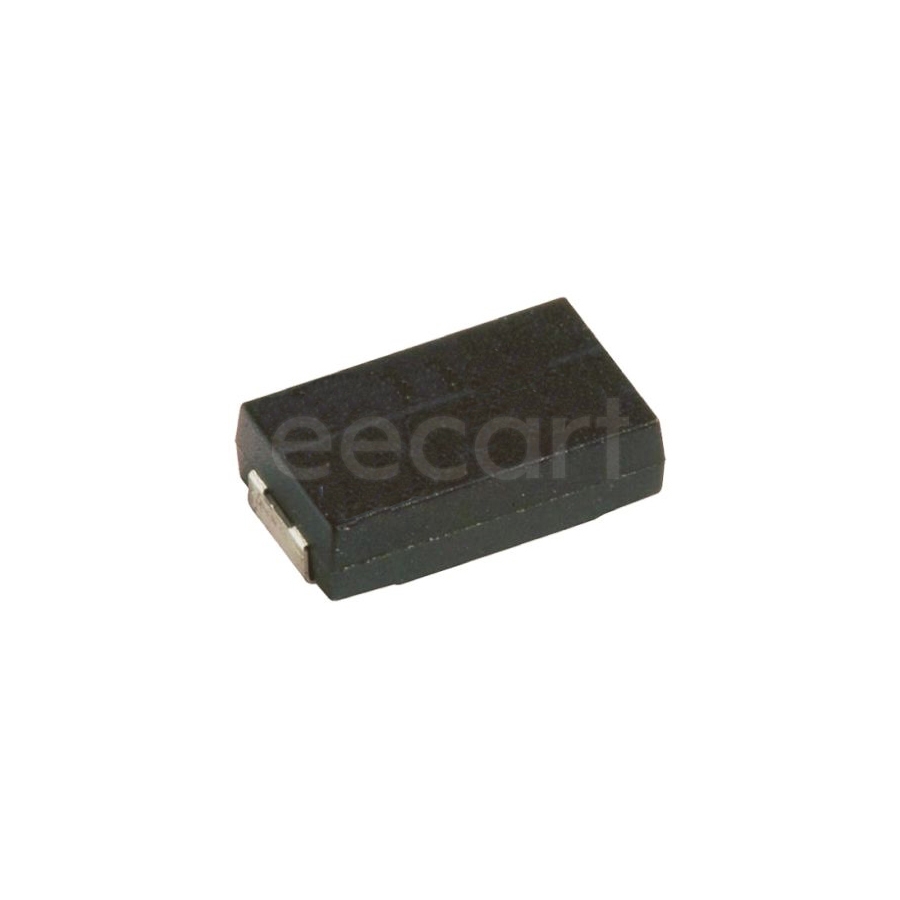

Polymer Capacitors 2917(7343 Metric) SMD/SMT 220 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 25 mΩ |
| Ripple Current | 2.4 A |
| Height - Seated (Max) | 2 mm |
| Length | 7.3 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Leakage Current | 138.6 µA |
| Dissipation Factor | 10 % |
| Height | 1.8 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532210080 |
| Life (Hours) | 1000 Hours |
| RoHS | Compliant |
Stock: 23
Distributors
pcbx
pcbxUnit Price$0.56928
Ext.Price$0.56928
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56928 | $0.56928 |
| 10 | $0.45456 | $4.54560 |
| 25 | $0.41457 | $10.36425 |
| 50 | $0.37810 | $18.90500 |
| 100 | $0.34484 | $34.48400 |
| 300 | $0.32732 | $98.19600 |
| 500 | $0.31069 | $155.34500 |
| 1000 | $0.29284 | $292.84000 |
