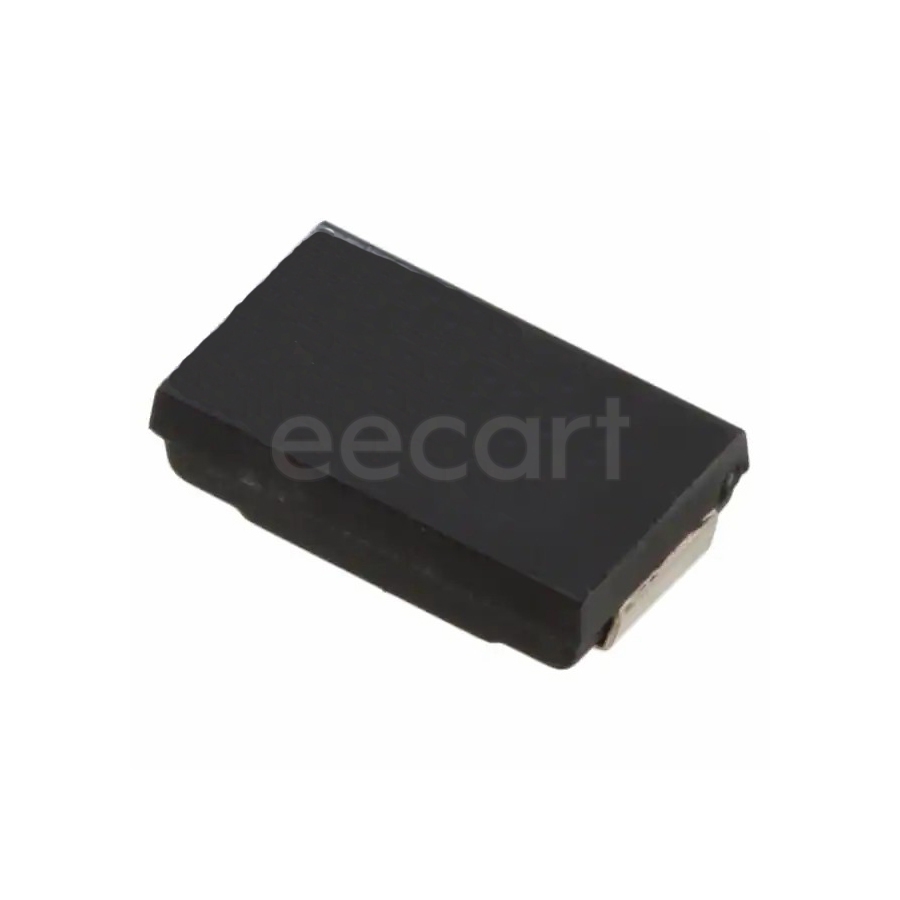

6TPE330MAP
Manufacturer:
Panasonic
Mfr.Part #:
6TPE330MAP
Datasheet:
Description:
Tantalum Capacitors 2917(7343 Metric) SMD/SMT 330 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 25 mΩ |
| Ripple Current | 2.4 A |
| Height - Seated (Max) | 2 mm |
| Length | 7.3 mm |
| Width | 4.2926 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Leakage Current | 207.9 µA |
| Dissipation Factor | 10 % |
| Height | 1.8 mm |
| Material | Polymer |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Type | Molded |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532210080 |
| Features | General Purpose |
| Life (Hours) | 2000 Hours |
Stock: 11248
Distributors
pcbx
pcbxUnit Price$0.62035
Ext.Price$0.62035
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62035 | $0.62035 |
| 10 | $0.51014 | $5.10140 |
| 25 | $0.47262 | $11.81550 |
| 50 | $0.43786 | $21.89300 |
| 100 | $0.40565 | $40.56500 |
| 300 | $0.37887 | $113.66100 |
| 500 | $0.35386 | $176.93000 |
| 1000 | $0.33708 | $337.08000 |
