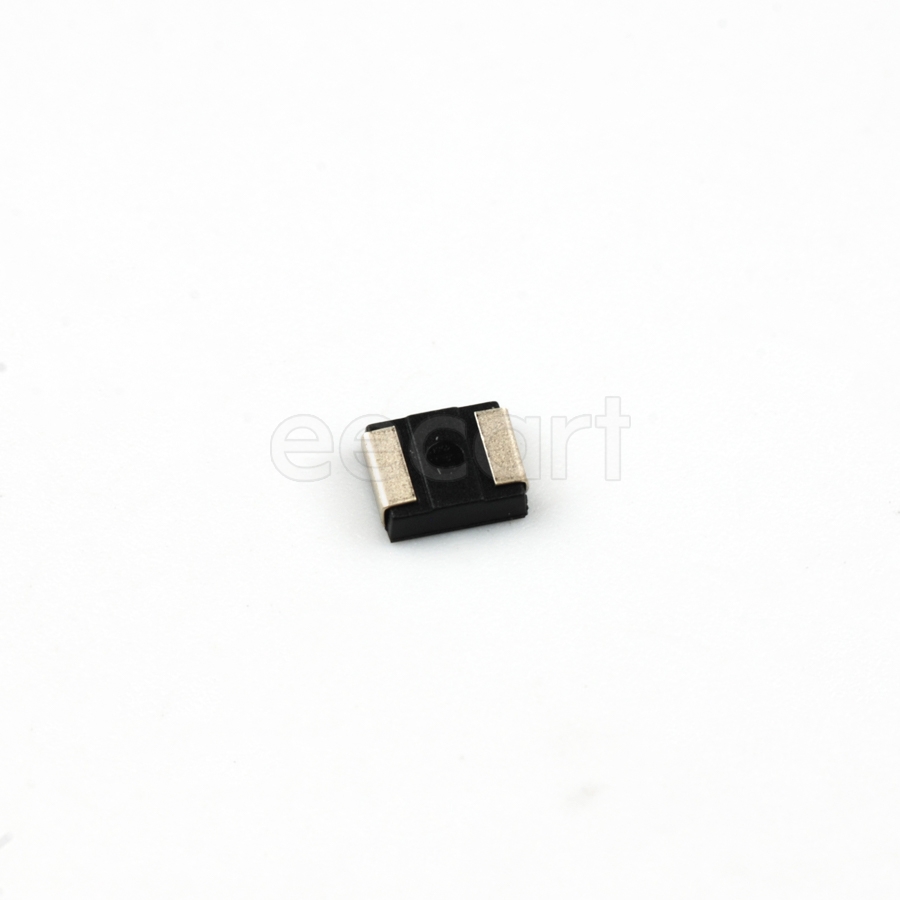

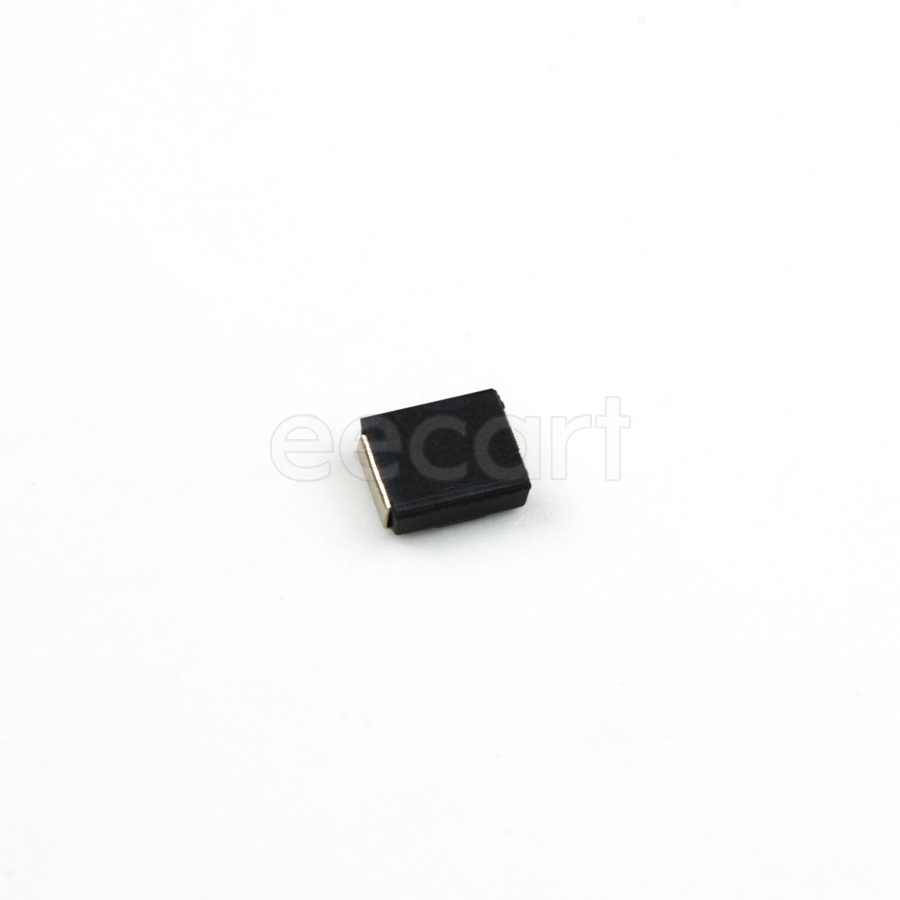

6TPG150M
Manufacturer:
Panasonic
Mfr.Part #:
6TPG150M
Datasheet:
Description:
Tantalum Capacitors 1411(3528 Metric) SMD/SMT 330 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 40 mΩ |
| Ripple Current | 1 A |
| Height - Seated (Max) | 2 mm |
| Length | 3.5 mm |
| Width | 2.794 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Leakage Current | 94.5 µA |
| Dissipation Factor | 10 % |
| Height | 1.4 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Features | General Purpose |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532210080 |
| Type | Molded |
