70246-2001
Manufacturer:
Molex
Mfr.Part #:
70246-2001
Datasheet:
Description:

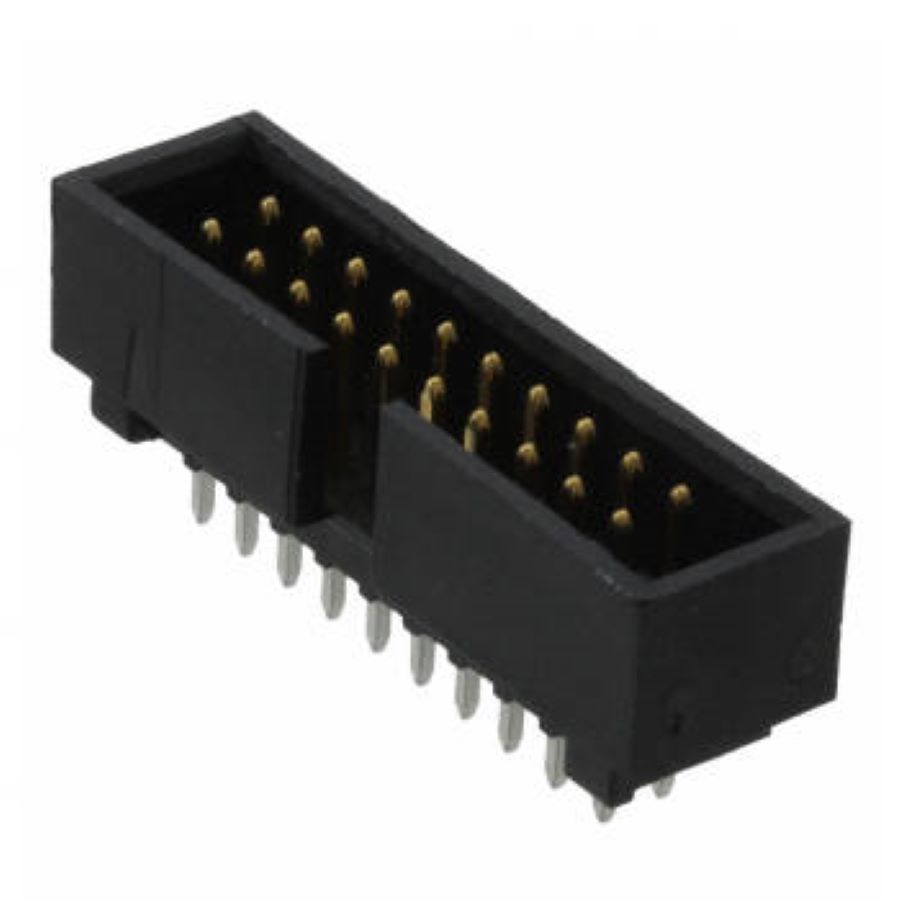

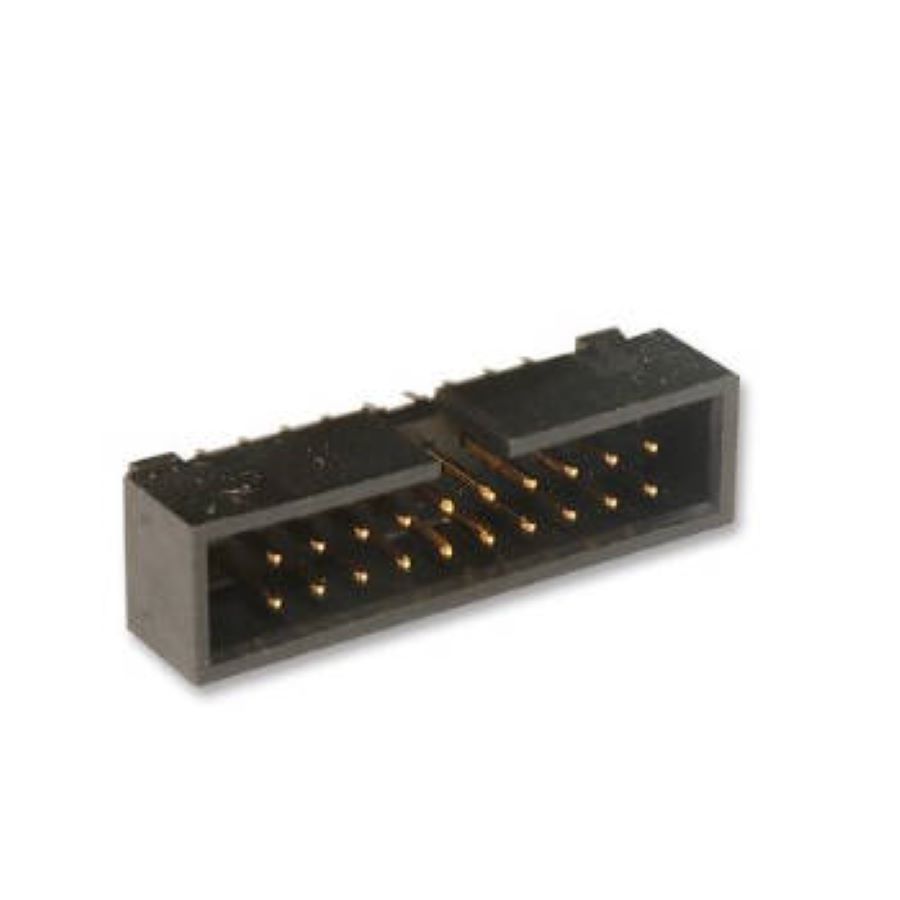

Headers and Wire Housings Through Hole Header Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 33.02 mm |
| Termination | Solder |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -55 °C |
| Height | 9.27 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 8.89 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 12 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 2.5 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 20 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SK |
| Termination Post Length | 3.43 mm |
Stock: 1374
Distributors
pcbx
pcbxUnit Price$1.51408
Ext.Price$1.51408
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.51408 | $1.51408 |
| 10 | $1.37644 | $13.76440 |
| 25 | $1.32685 | $33.17125 |
| 50 | $1.21400 | $60.70000 |
| 100 | $1.11099 | $111.09900 |
| 300 | $1.01672 | $305.01600 |
| 500 | $0.93045 | $465.22500 |
| 1000 | $0.85151 | $851.51000 |
