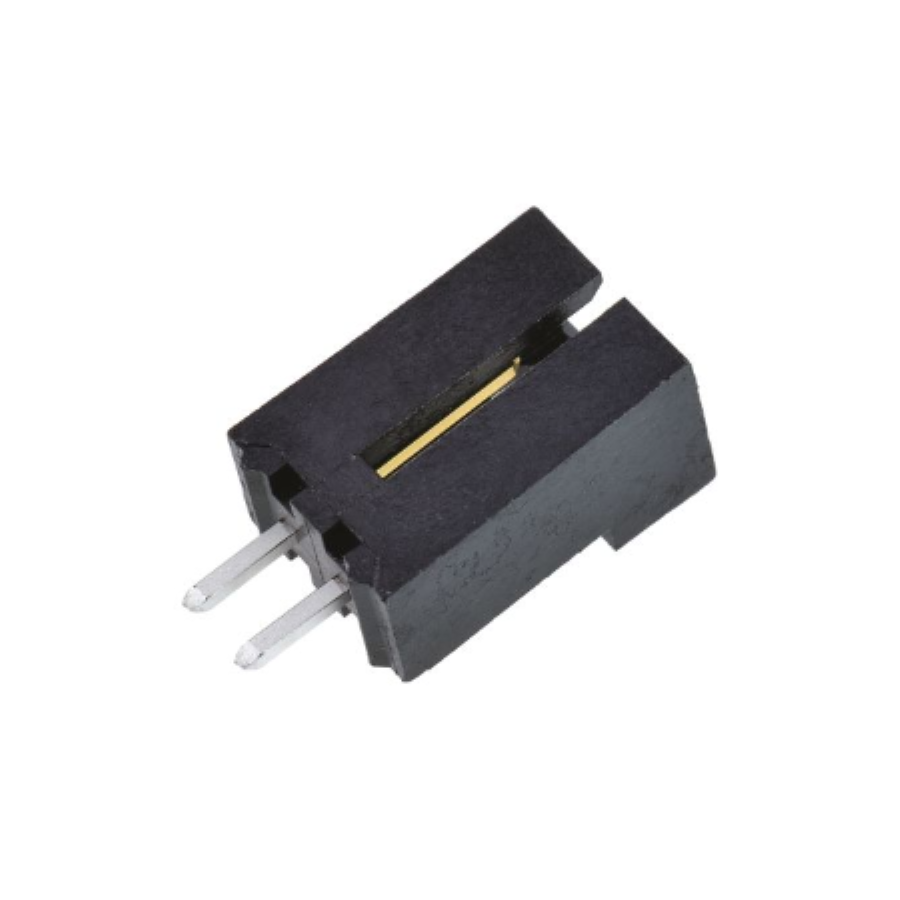

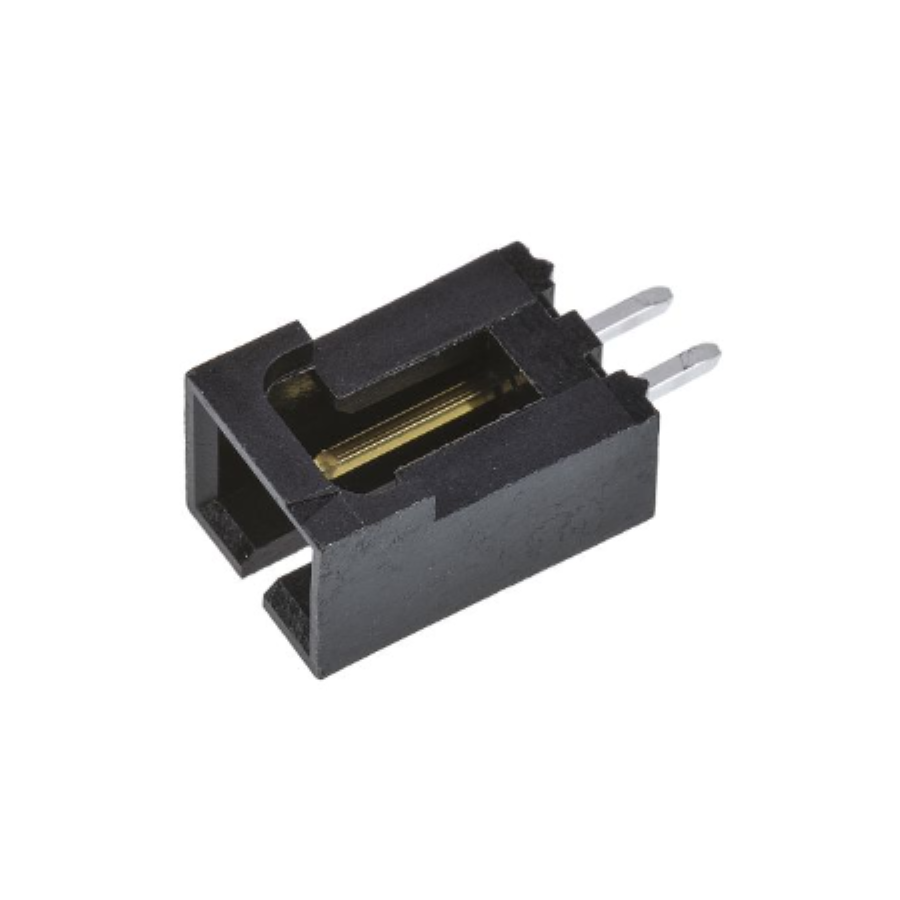

70543-0001
Manufacturer:
Molex
Mfr.Part #:
70543-0001
Datasheet:
Description:
Headers and Wire Housings Through Hole Shrouded Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 7.37 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 11.81 mm |
| Material | Brass |
| Voltage Rating | 250 V |
| Depth | 6.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Shrouded |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 31252
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.52322 | $5.23220 |
| 25 | $0.50526 | $12.63150 |
| 50 | $0.38985 | $19.49250 |
| 100 | $0.35386 | $35.38600 |
| 300 | $0.32119 | $96.35700 |
| 500 | $0.29153 | $145.76500 |
