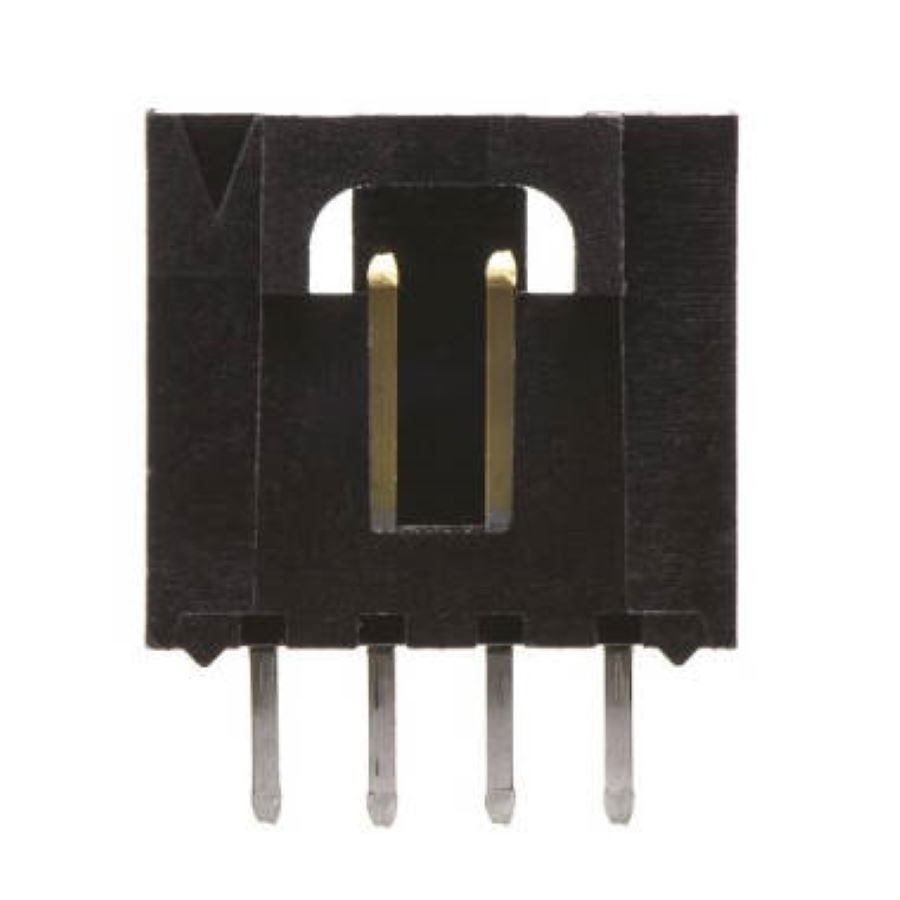

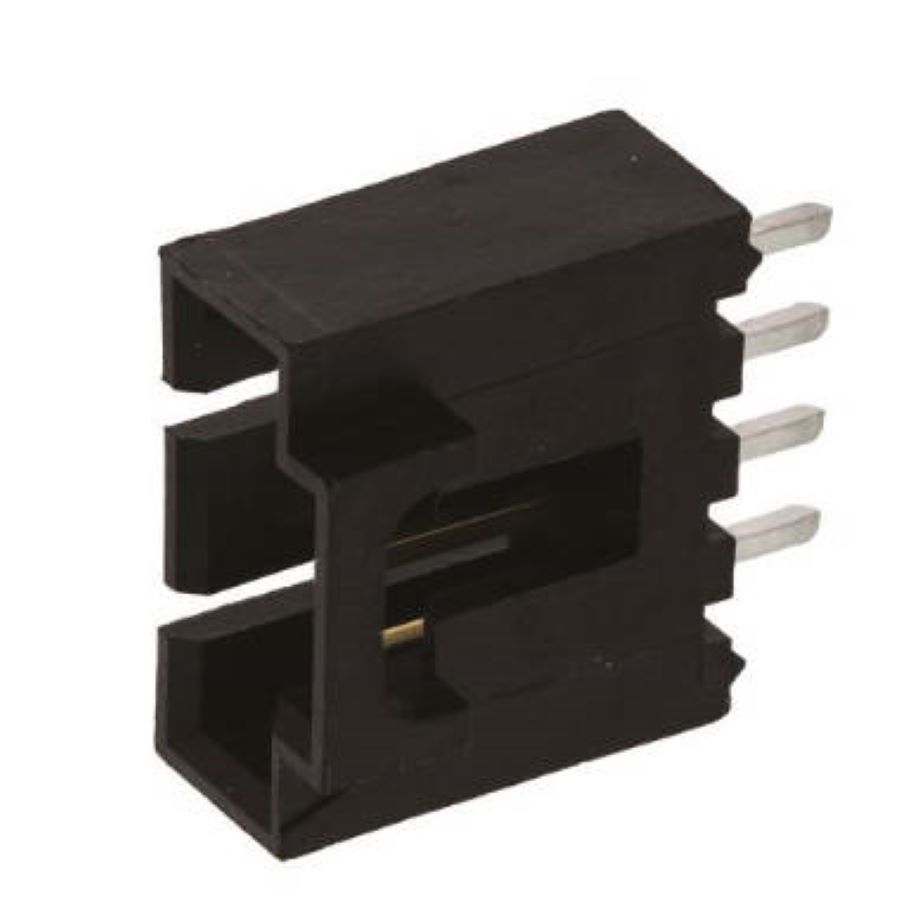

70543-0003
Manufacturer:
Molex
Mfr.Part #:
70543-0003
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.71 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 11.81 mm |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 6.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 29590
Distributors
pcbx
pcbxUnit Price$0.53177
Ext.Price$0.53177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53177 | $0.53177 |
| 10 | $0.52150 | $5.21500 |
| 25 | $0.50099 | $12.52475 |
| 50 | $0.43820 | $21.91000 |
| 100 | $0.38328 | $38.32800 |
| 300 | $0.33524 | $100.57200 |
| 500 | $0.29322 | $146.61000 |
| 1000 | $0.25648 | $256.48000 |
